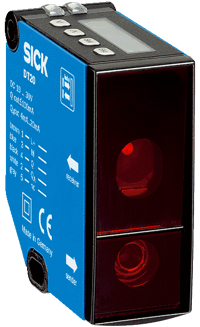

Images are representations only.

1044216

Series: DT20 Hi Displacement Measurement Sensor Brand: Sick AG
Price
$1,955.00 CAD
Stock
50+ In Stock
Request Information

  • Laser Class - 2
  • Measuring Range - 100 to 1,000 mm
  • Typical Light Spot Size (Distance) - 6 mm x 12 mm (1,000 mm)
  • Digital Ouput - 1 x NPN
  • Type - DT20-N224B

Specifications

Brand

Certifications & Approvals

  • CE
  • cULus

Measuring Range

  • 50 to 1,000 mm

Linearity

  • ± 0.5 to ± 6 mm

Repeatability

  • ≥ 0.125 mm, ≥ 0.25 mm, ≥ 0.5 mm, ≥ 2.5 mm

Response Time

  • ≥ 2.5 milliseconds

Output Time

  • ≥ 2.5 milliseconds

Measuring Frequency

  • ≤ 400 Hz

Digital Output

  • 1 x PNP
  • 1 x NPN

Light Source

  • Laser, Red

Type of Light

  • Visible Red Light

Analog Output

  • Current Output

Operating Temperature

  • Ambient -20° to 55° C at Vs = 24 V

Housing Material

  • Metal

Documentation

Data Sheets

Product Manuals

Brochure
