Images are representations only.

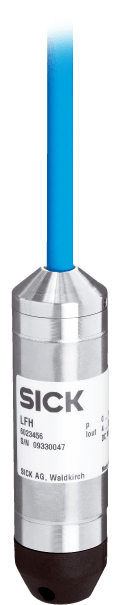

LFH-SW4X0G1AS03ST0

Series: LFH Pressure Sensor Brand: Sick AG
Price
$2,285.00 CAD
Stock
50+ In Stock
Request Information

IM0034059.png IM0034060.png
  • Accuracy - Standard Version
  • Pressure Unit - mH2O
  • Measuring Range - 0 to 4 mH2O
  • Output Signal - 4-20 mA, 2-Wire
  • Cable Sheath - PUR, -10° to +50° C (Standard)
  • Cable Length - 3 m
  • Supply Voltage - 10-30 Vdc
  • Electrical Options - Temperature Measurement with Pt-100, 4-Wire

Specifications

Brand

Certifications & Approvals

  • CE

Measuring Range

  • 0 to 1 mH₂O Up to 0 to 100 mH₂O
  • 0 to 0.1 bar Up to 0 to 25 bar

Accuracy

  • ≤ ± 0.5 % of the Span
  • ≤ ± 0.5 % of Span with Enhanced Version with p < 0.25 bar
  • ≤ ± 0.25 % of the Span for Enhanced Variant p ≥ 0.25 bar
  • ≤ ± 0.25 % of Span with Enhanced Version with p < 0.25 bar

Output Signal

  • 4-20 mA
  • 4-20 mA, 2-Wire
  • 0-10 V, 3-Wire

Electrical Connection

  • FEP / PUR Cable Connection

Process Temperature

  • -10° to 85° C

Documentation

Data Sheets

Product Manuals

Brochure
