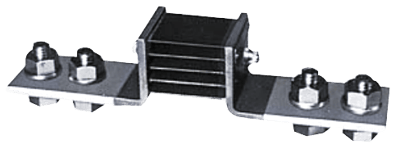

Yokogawa Shunt, 2216
Images are representations only.

2216 Shunt

Brand: Yokogawa Electric Corporation
Request Information
Favorite

Current cannot be measured directly by analog to digital converters, as they only measure voltage. Therefore, a resistor in the path of the adc is needed to convert the current to a measurable quantity.

High precision resistors, or electrical shunts, are employed so that current is accurately and faithfully reproduced by the measuring circuitry.
Features
  • Permissible Tolerance: ±0.2% of Rated Value
  • Rated Voltage Drop: 50 mV

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 3
221601
view description
  • Electrical Rating - 500 A, 50 mV
50+ In Stock
$2,452.00 CAD
Does not ship to OH, United States
221602
view description
  • Electrical Rating - 750 A, 50 mV
50+ In Stock
$2,331.00 CAD
Does not ship to OH, United States
221603
view description
  • Electrical Rating - 1,000 A, 50 mV
25+ In Stock
$867.00 CAD
Does not ship to OH, United States

View Details

Specifications

Brand

Electrical Rating

  • 500 to 1,000 A at 50 mV

Tolerance

  • ± 0.2 % of Rated Value - Permissible Tolerance

Voltage Drop

  • 50 mV
