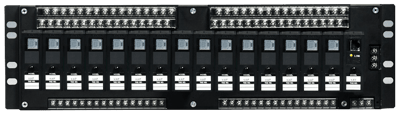

VJCE VJ Mounting Base

Brand: Yokogawa Electric Corporation

The VJCE is a horizontally installed, side-by-side multiple mounting base that complies with the standard rack-mounting dimensions specified by the JIS/EIA standards.

The VJCE base can accommodate up to 16 signal conditioners in the JUXTA VJ series.
Features
  • Different signal conditioner models in the VJ series can be mixed and housed in the same base

Models matching criteria: 4
  • Mountable Signal Conditioners - 16
  • Connection (Input / Output-1 / Output-2) - Screw Terminal / Screw Terminal / Screw Terminal
100+ In Stock
$508.00 CAD
Does not ship to OH, United States
  • Mountable Signal Conditioners - 16
  • Connection (Input / Output-1 / Output-2) - Screw Terminal / Screw Terminal / Connector
50+ In Stock
$1,537.00 CAD
Does not ship to OH, United States
  • Mountable Signal Conditioners - 16
  • Connection (Input / Output-1 / Output-2) - Connector/Screw Terminal/Screw Terminal
50+ In Stock
$1,762.00 CAD
Does not ship to OH, United States
  • Mountable Signal Conditioners - 16
  • Connection (Input / Output-1 / Output-2) - Screw Terminal / Connector / Screw Terminal
50+ In Stock
$2,549.00 CAD
Does not ship to OH, United States

Specifications

Approvals & Certifications

  • CSA 1010, Category II (IEC 1010-1)

Connection Pin-Out

  • 40-Pin Connector

Electrical Connectors

  • M3.5 Screw Terminal

Electrical Contacts

  • Normally Closed

Enclosure Finish

  • Black

Humidity

  • 5 to 90 % Relative Humidity Non-Condensing

Insulation Resistance

  • 100 megaohms Min. at 500 Vdc

Mounting

  • Four M5 Screws
  • Rack-Mounted
  • Wall Mounted

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Supply Voltage

  • 1,000 Vac - Withstanding Voltage for One Minute between Output-1 & Output-2
  • 12-48 Vdc
  • 2,000 Vac - Withstanding Voltage for One Minute between Input, (Output-1, Output-2)
  • 85-264 Vac/dc, 47 to 63 Hz
