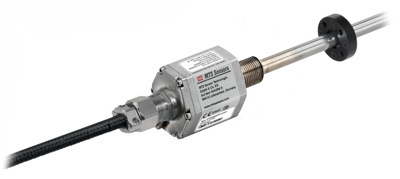

ET SSI Magnetostrictive Linear Position Sensor
Brand: Temposonics an Amphenol CompanyRobust, non-contact and wear free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.
The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors.
The position magnet is mounted on the moving machine part and travels contact-lessly over the sensor rod with the built-in waveguide.
Specifications
Approvals & Certifications
- ATEX Ex II 3 G Ex NC IIC T4 Gc II 3D Ex Tc IIIC T130° C Dc IP66/IP68
- CE
- CEC
- EAC
- IEC Ex
- NEC
Approvals & Certifications
- EMC Electromagnetic Emission EN 61000-6-4, Immunity EN 61000-6-2
- ISO 9001 (DQS)
Cable Material
- Silicone
- Teflon
Communication
- Data Length: 24-bit, 25-bit
- Synchronous Serial Interface
Consumption
- Current Consumption: 90 mA Typical, Dependent on Stroke Length
Electrical Connectors
- Cable Outlet
Electrical Protection
- Overvoltage Protection: up to 36 Vdc
- Polarity Protection: up to -30 Vdc
Enclosure, Body Material
- Sensor Electronics: AISI 303 Stainless Steel 1.4305
- Sensor Electronics: AISI 316L Stainless Steel, 1.4404
Environmental Protection
- Ingress Protection Version a & E with Teflon Cable: IP66
- Version A, E & N with Silicone Cable: IP68 [psi: 29 (kPa: 200, bar: 2) at 30 minutes]
Flange Material
- AISI 303 Stainless Steel 1.4305
- AISI 316L Stainless Steel, 1.4404
Humidity
- 90 % Relative Humidity, Non-Condensing
Length
- Stroke Length: 1 to 118” (50 to 3,000 mm)
Linearity
- ≤ ± 0.02 % of Full Scale (Min. ± 60 µm)
Materials of Construction
- Sensor Rod: AISI 304L Stainless Steel 1.4306
- Sensor Rod: AISI 316L Stainless Steel, 1.4404
Metric Connection
- M18 x 1.5-6 G
Mounting Position
- Any Orientation
Operating Pressure
- psi: 0 to 5,076 (kPa: 0 to 35,000, bar: 0 to 350)
Operating Temperature
- -40° to 90° C (-40° to 194° F)
Operating Voltages
- 24 Vdc (-15 / 20 %)
Principle of Operation
- Magnetostrictive Principle
Repeatability
- ≤ ± 0.005 % of Full Scale (Min. ± 20 µm) Typical
Resolution
- 10 µm
- 100 µm
- 20 µm
- 5 µm
- 50 µm
Shock
- 100 G (Single Shock) IEC 60068-2-27
UNF/UNC Connection
- 3/4”-16 UNF Male-3A
Vibration
- 15 G (10 to 2,000 Hz), IEC 60068-2-6 (Resonance Frequencies Excluded)
Voltage
- Dielectric Strength: 700 Vdc (DC Ground to Machine Ground)
- Harsh Environments
