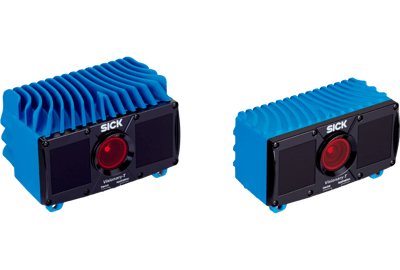

Visionary-T 3D Machine Vision
Brand: Sick AGVisionary-T 3D vision sensors from SICK offer maximum flexibility for indoor use due to their innovative 3D-snapshot technology. The Visionary-T provides real-time depth information for each pixel – even for stationary applications – based on time-of-flight measurement.
The sensors transmit the complete raw data and data that has been specifically pre-processed for the application in question. In addition, however, it is also possible to transfer measured values that have already been evaluated, resulting in simple sensor responses. In this way, the right information is always transmitted – customized to suit the respective application.
High-performance visualization tools and reliable 3D information make the Visionary-T the ideal solution in applications including intralogistics, robotics, or industrial vehicles.
At a glance
- Record up to 50 3D images per second
- Distance values: 144 x 176 pixels per recording
- Output of 3D data via a Gigabit Ethernet interface and simple digital outputs
- Provision of application-specific data
- Temperature range: 0° to 50° C or 0° to 45° C (depending on the housing), enclosure rating: IP67
- More than 25,000 distance and intensity values in a single shot
- 3D information is also available for stationary applications
- Easy mounting and rapid sensor replacement
- Programming interface for the use of 3D data for additional evaluation on an external host
- The Visionary-T CX provides 3D data via Ethernet
- The Visionary-T AG offers intelligent data reduction
- The Visionary-T DT is a configurable plug and play 3D detection sensor
- The Visionary-T AP is based on the SICK AppSpace and makes it possible to create applications with SICK AppStudio as well as load application-specific Key Apps to the sensor using SICK AppManager
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 8
- Sub Product Family - Visionary-T CX
- Type - V3S100-2AAAAAA
100+ In Stock
$100.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T AP
- Type - V3S140-2AABAAB
50+ In Stock
$1,227.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T AG
- Integrated Application - Data Stream with the Option of Filtering, Reducing, and Manipulating Data inside the Device
- Type - V3S110-2AAAAAA
50+ In Stock
$1,951.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T DT
- Type - V3S130-2AAAAAA
50+ In Stock
$668.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T CX
- Type - V3S100-2AABAAB
50+ In Stock
$380.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T DT
- Type - V3S130-2AABAAB
25+ In Stock
$1,567.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T AP
- Type - V3S140-2AAAAAA
25+ In Stock
$2,206.00 CAD
Does not ship to OH, United States
- Sub Product Family - Visionary-T AG
- Integrated Application - Data Stream with the Option of Filtering, Reducing, and Manipulating Data inside the Device
- Type - V3S110-2AABAAB
22 In Stock
$692.00 CAD
Does not ship to OH, United States
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus
Enclosure Rating
- IP67
Technology
- 3D Snapshot, Image Analysis
Light Source
- Internal Lighting
Configuration Software
- SOPAS ET / Telegram Interface / API (Java) / Web-Interface / SICK AppManager / SICK AppStudio / Web-Interface
Communication Interface
- Ethernet
Ambient Operating Temperature
- 0° to 45° C without Cooling Fins
- 0° to 50° C with Cooling Fins
- Collision warning and navigation
- Object detection
- Palletizing and depalletizing
- Intralogistics
- Factory automation
- Automotive industry
