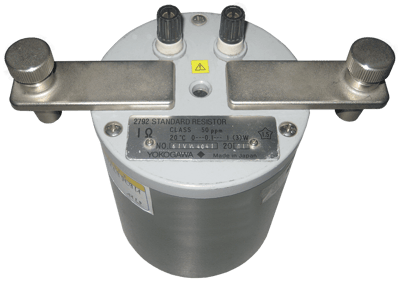

2792A Series Standard Resistor
Brand: Yokogawa Electric Corporation
The 2972A Series of standard resistors are metal foil resistors, while the previous 2972 Series were winding resistors.
The error range of the 2972A Series is much smaller than those of the previous 2972 Series, as demonstrated by the resistance temperature coefficient curves.
Precision temperature control equipment such as oil baths, are not needed for measurement and calibration. The 2972A can do these in an air environment.
Features- Traced to the National Standard for high accuracy; test (calibrated) accuracy of ±5 ppm
- Resistance temperature coefficient. Excellent temperature characteristics in the range of 0° to 50° C (32° to 122° F) resistance temperature coefficient less than ±2.5 ppm / ° C
- A variety of models. Eight models with nominal resistance values ranging between 0.001 Ohm and 10 KiloOhms
- Precision temperature control equipment, such as an oil bath, not needed for calibration due to marked improvement in resistance temperature coefficient
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 8
- Nominal Value - 1 Ohm
100+ In Stock
$2,146.00 CAD
Does not ship to OH, United States
- Nominal Value - 10 Ohms
100+ In Stock
$658.00 CAD
Does not ship to OH, United States
- Nominal Value - 0.001 Ohm
50+ In Stock
$286.00 CAD
Does not ship to OH, United States
- Nominal Value - 100 Ohms
50+ In Stock
$1,044.00 CAD
Does not ship to OH, United States
- Nominal Value - 10 KiloOhms
50+ In Stock
$1,458.00 CAD
Does not ship to OH, United States
- Nominal Value - 0.1 Ohm
25+ In Stock
$138.00 CAD
Does not ship to OH, United States
- Nominal Value - 0.01 Ohm
4 In Stock
$447.00 CAD
Does not ship to OH, United States
- Nominal Value - 1 KiloOhm
4 In Stock
$1,603.00 CAD
Does not ship to OH, United States
Specifications
Accuracy
- ± 30 to ± 100 ppm at 23° C (73.4° F) ± 2° C (± 3.6° F)
- Test (Calibrated) Accuracy: ± 5 ppm
Current
- Maximum
Humidity
- 20 to 80 % Relative Humidity
Insulation Resistance
- More Than 1,000 megaohms at 500 Vdc
Operating Temperature
- 0° to 50° C (32° to 122° F)
Power
- Maximum
- Power Characteristics: ± 100 ppm/W
Resistance
- Nominal Resistance: 0.001 ohm to 10 kiloohms
Storage Temperature
- -20° to 60° C (-4° to 140° F)
Supply Voltage
- Withstand Voltage: 1.5 kV for One Minute between Measurement Terminal & Casing
Temperature Coefficient
- -5° to ± 15 ppm/°C
- Less than -0.1 ppm/°C²
Thermal Drift
- Drift: ± 30 to ± 100 ppm Per Year
