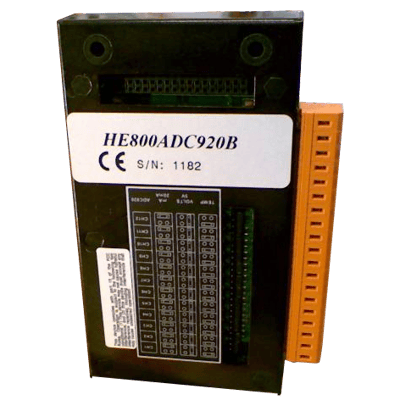

HE800ADC920/HE-ADC920 Thermistor/Current/Voltage Analog Input Module
Brand: HornerClassic modular stack-on modules for our OCS, RCS, RX, NX and QX series controllers.
Allow for flexible on-board I/O options.
Features- Metal SmartStack I/O can only be stacked directly on the back of products supporting metal encased I/O models, such as: Classic OCS, RCS, RX ruggedized controller, and Metal FOX. Products are sorted by commonality.
- Plastic SmartStack I/O can only be stacked directly on the back of products supporting plastic encased I/O modules. This includes the NX, QX351, Back Pack, Plastic FOX and RCX bases.
- All SmartStack I/O modules include spring-clamp style removable terminals except where noted.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 2
100+ In Stock
$649.00
CAD
Does not ship to OH, United States
50+ In Stock
$1,533.00
CAD
Does not ship to OH, United States
Specifications
Brand
Accuracy
- Maximum
Approvals & Certifications
- CE
- UL
Channels
- 12
Communication
- SmartStix I/O
Enclosure, Body Material
- Metal
- Plastic
Humidity
- 5 to 95 % - Non-Condensing
Input
- Current: 0-20.47 mA
- Thermister: -37° to 115° C (-35° to 240° F)
- Voltage: 0-5.11 Vdc
Input Impedance
- Current: 250 kiloohms (< 12 Vdc, Clamped at 12 Vdc, 35 mA - Max.
- Thermister: 10 kiloohms (< 12 Vdc, Clamped at 12 Vdc, 35 mA - Max.
- Voltage: 1 Megaohm (< 12 Vdc, Clamped at 12 Vdc, 35 mA - Max.
Maximum Current
- Maximum
Operating Temperature
- 0° to 60° C (32° to 140° F)
Power Requirement
- Steady State 0.19 W (8 mA at 24 Vdc)
Resolution
- 12-bit
Temperature Effect
- Additional Error for Temperatures Other Than 25° C: 0.01 %/°C
