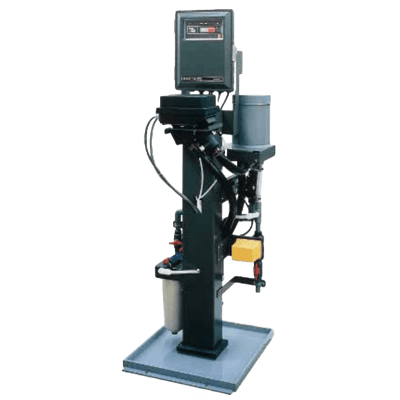

TB400G Turbidity Meter
Brand: Yokogawa Electric CorporationTurbidity analyzers conventionally used for the operation and control of a water purification plant, are nowadays being required to measure the amount of matter suspended in various sorts of industrial waste water and to detect the turbidity of chemical processes.
Since their sales began in 1959, Yokogawa's process-use turbidity analyzers, centering on the area of water supply, have achieved a number of records and have provided high reliability to many users.
The TB400G surface scattering light turbidity analyzer has a microprocessor to provide intelligent features for advanced performance and high reliability.
Features- Equipped with a microprocessor, allowing provision of advanced performance and high reliability.
- Enhanced self-testing functions such as detection of a disconnected lamp, a converter check, and upper and lower limit alarms.
- Provided with multiple functions such as automatic zero calibration.
- Compact and lightweight. The system allows access from the front, offering easy maintenance.
- Use of the surface scattering-light measuring method eliminates the measurement errors caused by contamination of the cell port.
- Signal smoothing as a measure against air bubbles in water samples.
Specifications
Ambient Temperature Range
- -10° to 50° C (14° to 122° F)
Approvals & Certifications
- KC
Cable Entry
- 5 Cable Glands (On the Bottom of the Converter)
Communication
- RS-232C - Digital Output Signal
Consumption
- 200 VA or Less - with Sampling System
- 50 VA or Less - Detector & Converter
Diameter
- 0.23” to 0.47” (6 to 12 mm) - Outer Diameter of Applicable Wires
- 0.35” to 0.43” (9 to 11 mm) - when with Arrester
Display
- 4-Digit LED Display, Max.
Electrical Rating
- 2 A at 220 Vdc, 120 VA/60 W (Resistive Load)
- 2 A at 250 Vac, 120 VA/60 W (Resistive Load)
Enclosure Finish
- Polyurethan Resin Baked Finish (Munsell 0.6 GY3.1/2.0 & Munsell 2.5Y8.4/1.2) - Converter & (Munsell 0.6 GY3.1/2.1) - Stanchion
Environmental Protection
- IP53
Flow Rate
- 0.4 to 0.52 gpm (1.5 to 2 LPM) - without Sampling System
- 0.5 to 2.64 gpm (2 to 10 LPM) - with Sampling System, Zero Turbidity Water
- 0.79 to 1.58 gpm (3 to 6 LPM) - Cleaning Water
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing - Ambient Humidity
Linearity
- ± 2 % of Upper Range Limit - Upper Range Limit of 1,000 mg/L or Less (When Using Kaolin Standard), 100 mg/L or Less (When Using Polystyrene Latex Standard)
- ± 5 % of Upper Range Limit - Upper Range Limit of 2,000 mg/L or Less (When Using Kaolin Standard)
Materials of Construction
- Aluminum Alloy Casting - Converter
- Carbon Steel - Stanchion
- Stainless Steel - Stanchion, Tag Plate
Measuring Range
- 0 to 2 to 0 to 2,000 mg/L
Mounting
- Pipe Mounted
- Rack-Mounted
Output
- 1-5 Vdc - Analog Output Signal (Output Resistance: 100 ohms or Less)
- 4-20 mA DC - Analog Output Signal, Max.
Power Supply
- 100/110 Vac, 50/60 Hz
- 200/220 Vac, 50/60 Hz
Power Supply Effect
- ± 1 % of Upper Range Limit / within ± 10 % of Rated Voltage
Pressure Range
- psi: 14.5 to 72.52 (kPa: 100 to 500, bar: 1 to 5) - Zero Turbidity Water & Cleaning Water (Tap Water)
- psi: 2.9 to 72.52 (kPa: 20 to 500, bar: 0.2 to 5) - with Sampling System
Repeatability
- 2 % of Upper Range Limit - Standard Solution
Resistance
- 100 kiloohms or more - Input Resistance when OFF
- 200 ohms or Less - Input Resistance when ON
Resolution
- 0.01 mg/L (4-Digits LED Display)
Response Time
- 2 minutes or Less
Storage Temperature
- -30° to 70° C (-22° to 158° F)
Temperature Effect
- ± 1 % of Upper Range Limit/10° C - Ambient Temperature Effect
Temperature Range
- 0° to 50° C (32° to 122° F) - Zero Turbidity Water & Cleaning Water (Tap Water)
Update Time
- 30 minutes - Warm-Up Time
Wetted Materials
- Hard PVC - Piping
- Modified Black PPE - Detector
- Polyethylene Resin - Piping
- Polypropylene Resin - Piping
