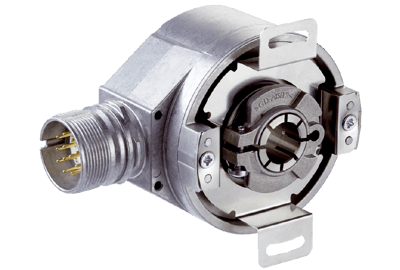

SFS/SFM60 Motor Feedback Systems Rotary HIPERFACE®
Brand: Sick AGSICK is rounding out its portfolio with the optical high-resolution SFS/SFM60 motor feedback systems in hollow shaft design. Especially with self- and force-ventilated synchronous motors, this mechanical component meets customer requirements, as do various hollow shafts and high protection classes (IP 65). A wide variety of product variants fulfills nearly every requirement.
The SFS/SFM60 motor feedback systems use a globally standardized interface. It provides maximum flexibility and reduces installation times - plug & play at its best.
The rugged shaft bearing increases the service life and at the same time reduces the servicing and maintenance requirements. It also achieves optimum concentricity and a previously unattainable low level of vibration even at maximum operating speeds.
At a glance
- HIPERFACE® motor feedback system in singleturn and multiturn design, compatible with the world's leading drive systems
- 1,024 sine/cosine periods per revolution
- Absolute position with a resolution of 32,768 increments per revolution and 4,096 revolutions with the multiturn system
- Mechanical flexibility through different blind hollow shaft and through hollow shaft diameters (8 to 15 mm diameter), available with various stator couplings
- IP 65 protection class
- Certified according to SIL2/PL d (only valid for SFS60S/SFM60S...)
- Convenient traceability and simple maintenance thanks to storage of motor-specific data in the electronic type label
- Large ball bearing distances reduce uneven wear and minimize vibration on the encoder housing, which increases the encoder's service life
- The nickel code disk offers a high degree of vibration resistance and an extended temperature range
- Shorter development times through standardized mechanical interface
- Platform for the future, since all electrical interfaces (TTL/HTL, 1Vpp, SSI, PROFIBUS, HIPERFACE DSL®) are or will be available in this mechanical component
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 672
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 3/8"
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 2*
- Memory Bank - 2048 E²PROM
100+ In Stock
$155.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 1/2"
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$212.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 3/8"
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,393.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 14 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 4*
- Memory Bank - 2048 E²PROM
100+ In Stock
$912.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 15 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,363.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 15 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,795.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 12 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$300.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$662.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 10 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 1*
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,114.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 2*
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,337.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 1/2"
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,468.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 3*
- Memory Bank - 2048 E²PROM
100+ In Stock
$786.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 15 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 2*
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,224.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 14 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,536.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 14 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,205.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,469.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 3/8"
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 2*
- Memory Bank - 2048 E²PROM
100+ In Stock
$780.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 12 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,342.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 12 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,508.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 15 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Blind Hollow Shaft
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,748.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 4*
- Memory Bank - 2048 E²PROM
100+ In Stock
$999.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 12 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,008.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 1/2"
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,909.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 12 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,086.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,491.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,521.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Memory Bank - 2048 E²PROM
100+ In Stock
$258.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 2*
- Memory Bank - 2048 E²PROM
100+ In Stock
$731.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 10 mm
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Through Hollow Shaf
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,780.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 8 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 4*
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,808.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 14 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 4*
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,120.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 3/8"
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$276.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 10 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 4*
- Memory Bank - 2048 E²PROM
100+ In Stock
$479.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 14 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$653.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 1/2"
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Blind Hollow Shaft
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,031.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 3/8"
- Connection Type - Male Connector, M12, 8-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,080.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 15 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 4*
- Memory Bank - 2048 E²PROM
100+ In Stock
$2,445.00 CAD
Does not ship to OH, United States
- Encoder Design - Singleturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 10 mm
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Blind Hollow Shaft
- Stator Coupling - Variant 3*
- Memory Bank - 2048 E²PROM
100+ In Stock
$350.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Standard
- Communication Interface - HIPERFACE®
- Shaft Diameter - 3/8"
- Connection Type - Male Connector, M23, 12-pin, Radial
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Variant 3*
- Memory Bank - 2048 E²PROM
100+ In Stock
$991.00 CAD
Does not ship to OH, United States
- Encoder Design - Multiturn
- Type - Safety
- Communication Interface - HIPERFACE®
- Shaft Diameter - 14 mm
- Connection Type - Cable, 8-wire, Universal, 1.5 m
- Shaft Type - Through Hollow Shaf
- Stator Coupling - Standard
- Memory Bank - 2048 E²PROM
100+ In Stock
$1,381.00 CAD
Does not ship to OH, United States
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP65
Type
- Stand-Alone
Model
- Absolute Singleturn
- Absolute Multiturn
Communication Interface
- HIPERFACE
Sine/Cosine Periods Per Revolution
- 1,024
Mechanical Interface
- Blind Hollow Shaft, 8 mm, 3/8”, 10 mm, 12 mm, 1/2″, 14 mm, 15 mm
- Through Hollow Shaft, 8 mm, 3/8”, 10 mm, 12 mm, 1/2″, 14 mm, 15 mm
Connection Type
- Male Connector, M23, 12-Pin, Radial
- Male Connector, M12, 8-Pin, Radial
- Cable, 8-Wire, Radial, 1.5 m
Available Memory Ares
- 1,792 Byte E²PROM 2048
