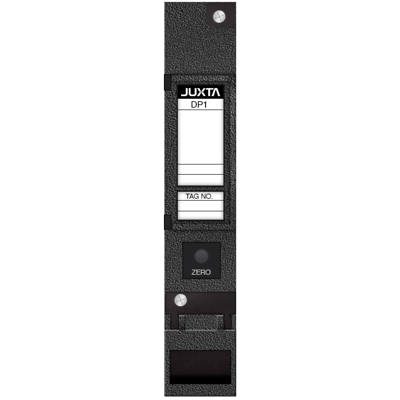

DP1 Pulse Repeater

Brand: Yokogawa Electric Corporation

The DP1 is a nest-mounting type DCS-supported pulse repeater that receives pulses from voltage-free contacts, open collector contacts, voltage, and current, and converts them into isolated transistor-contact pulses.
Features
  • Internal filter can be set to eliminate chattering (In cases where the input frequency range is up to 100 Hz, the pulse width is 3 Milliseconds or more)

Specifications

Consumption

  • 60 mA at 24 Vdc - Current Consumption

Electrical Connectors

  • M4 Screw Terminal - External Wiring

Electrical Rating

  • 15 mA or more at 15 Vdc - Contact Capacity
  • 30 mA at 30 Vdc - Max.

Frequency

  • 0 to 10,000 Hz - Input Frequency
  • 0 to 6,000 Hz - Input Frequency if the Input is Voltage Pulse & the Swing is 5 V or more

Humidity

  • 5 to 90 % Relative Humidity, Non-Condensing

Input

  • 2-Wire - Voltage-Free Contact Pulse, Voltage Pulse, or Current Pulse
  • 3-Wire - Voltage Pulse or Current Pulse
  • Relay Contact
  • Transistor ON/OFF Contact

Insulation Resistance

  • 100 megaohms or more at 500 Vdc between Input & Output, Output & Power Supply, & Input & Power Supply

Mounting

  • Nest-Mounting

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Output

  • Open Collector

Power

  • 0.5 W (12 Vdc Power Supply)
  • 2 W (24 Vdc Power Supply)

Power Supply

  • 12 Vdc ± 10 % - Transmitter Power Supply
  • 24 Vdc ± 10 % (Ripple Content 5 % Peak-to-Peak or Less) - Transmitter Power Supply
  • 30 mA or Less - Transmitter Power Supply

Pulse Range

  • 60 µs - Min. Input Pulse Width

Resistance

  • 1 Kiloohm - Internal Load Resistance (Current Pulse)
  • 15 kiloohms or more (Contact or Volatge Pulse) - Input Resistance
  • 200 ohms - Internal Load Resistance (Current Pulse)
  • 510 ohms - Internal Load Resistance (Current Pulse)
  • Close: 200 ohms or Less - Contact Resistance
  • Open: 100 kiloohms or more - Contact Resistance

Supply Voltage

  • -1 to 8 Vdc - Low Level Voltage
  • 1,500 Vac/minute between Input & (Output & Power Supply) - Withstand Voltage
  • 3-24 Vdc - High Level Voltage
  • 500 Vac/Minute between Output & Power Supply - Withstand Voltage
