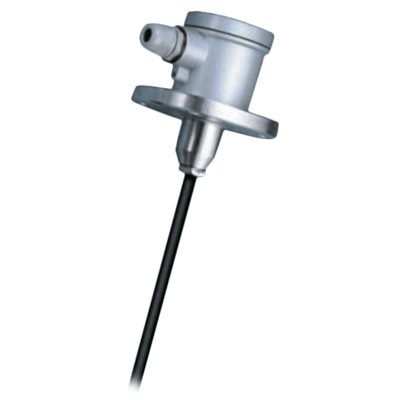

FineTek Pressure Level Transmitter, EC1100/1300 Series
Images are representations only.

EC1100/1300 Series Pressure Level Transmitter

Part Number: EC1100/1300 SERIES Brand: FineTek
Price
$827.00 CAD
Stock
50+ In Stock
Request Information

FineTek Pressure Level Transmitter, EC1100/1300 Series
EC1100 is a liquid measurement device which can be used in a variety of environments, including wateragitation environments.
Features
  • FineTek Models include: extension cable transducer, anti-corrosive model, flanged models & pressure transducers.
  • Can be connected to digital panel meters, recorders, PLC, signal controllers.
  • The metal diaphragm is suitable in as weak acid and alkaline liquids or sewage water treatment.
  • Our internal temperature compensation ensures long lasting reliability.
  • Customized flange/screw sizes available.

Specifications

Brand

Ambient Temperature Range

  • 60° C (140° F)

Approvals & Certifications

  • CE

BSP Connection

  • 1” BSP Male
  • 1/2” BSP Male
  • 1-1/2” BSP Male
  • 2” BSP Male
  • 2-1/2” BSP Male
  • 3” BSP Male
  • 3/4” BSP Male
  • 4” BSP Male
  • 5” BSP Male
  • 6” BSP Male

Cable Material

  • PVC

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - JIS 5K
  • 1-1/2” (DN 40) - PN 10
  • 1-1/2” (DN 40) - PN 16
  • 1-1/2” (DN 40) - PN 25
  • 1-1/2” (DN 40) - PN 40

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - JIS 5K
  • 1” (DN 25) - PN 10
  • 1” (DN 25) - PN 16
  • 1” (DN 25) - PN 25
  • 1” (DN 25) - PN 40

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 300#
  • 1/2” (DN 15) - JIS 10K
  • 1/2” (DN 15) - JIS 5K
  • 1/2” (DN 15) - PN 10
  • 1/2” (DN 15) - PN 16
  • 1/2” (DN 15) - PN 25
  • 1/2” (DN 15) - PN 40

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#
  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 5K
  • 2-1/2” (DN 65) - PN 10
  • 2-1/2” (DN 65) - PN 16
  • 2-1/2” (DN 65) - PN 25
  • 2-1/2” (DN 65) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 5K
  • 2” (DN 50) - PN 10
  • 2” (DN 50) - PN 16
  • 2” (DN 50) - PN 25
  • 2” (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 5K
  • 3” (DN 80) - PN 10
  • 3” (DN 80) - PN 16
  • 3” (DN 80) - PN 25
  • 3” (DN 80) - PN 40

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - JIS 10K
  • 3/4” (DN 20) - JIS 5K
  • 3/4” (DN 20) - PN 10
  • 3/4” (DN 20) - PN 16
  • 3/4” (DN 20) - PN 25
  • 3/4” (DN 20) - PN 40

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 5K
  • 4” (DN 100) - PN 10
  • 4” (DN 100) - PN 16
  • 4” (DN 100) - PN 25
  • 4” (DN 100) - PN 40

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#
  • 5” (DN 125) - 300#
  • 5” (DN 125) - JIS 10K
  • 5” (DN 125) - JIS 5K
  • 5” (DN 125) - PN 10
  • 5” (DN 125) - PN 16
  • 5” (DN 125) - PN 25
  • 5” (DN 125) - PN 40

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 5K
  • 6” (DN 150) - PN 10
  • 6” (DN 150) - PN 16
  • 6” (DN 150) - PN 25
  • 6” (DN 150) - PN 40

Linearity

  • 0.3 % of Full Scale

Loop Resistance

  • Less than 500 ohms

Measuring Range

  • 0 to 100 metres

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1-1/2” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male
  • 3/4” NPT Male
  • 4” NPT Male
  • 5” NPT Male
  • 6” NPT Male

Operating Temperature

  • -10° to 80° C (14° to 176° F)

Output

  • 4-20 mA

Pressure Range

  • bar: 0 to 10
  • kPa: 0 to 1,000
  • psi: 0 to 145

PT/PF/PS (JIS) Connection

  • 1” PF Male
  • 1” PT Male
  • 1/2” PF Male
  • 1/2” PT Male
  • 1-1/2” PF Male
  • 1-1/2” PT Male
  • 2” PF Male
  • 2” PT Male
  • 2-1/2” PF Male
  • 2-1/2” PT Male
  • 3” PF Male
  • 3” PT Male
  • 3/4” PF Male
  • 3/4” PT Male
  • 4” PF Male
  • 4” PT Male
  • 5” PF Male
  • 5” PT Male
  • 6” PF Male
  • 6” PT Male

Stability

  • Long Term Stability: < 0.1 %

Supply Voltage

  • 13-36 Vdc

Wetted Materials

  • 304 Stainless Steel
  • 316 Stainless Steel
  • PTFE
