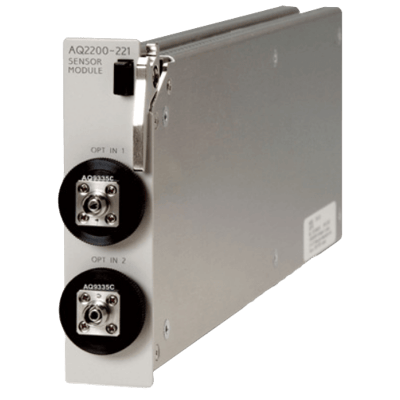

AQ2200-221 Optical Sensor Module

Brand: Yokogawa Electric Corporation

The AQ2200-221 is a high-performance yet compact module equipped with two sensors.

The module offers high-speed sampling, low polarization dependency, and rich data processing capabilities for improved measurement throughput and low-cost multi-port measurement.

With two high-performance sensors in one slot, this Optical Power Meter Sensor Module is ideal for space-saving, multi-port measurements.
Features
  • Compact, the AQ2200-221 comes with two high-performance sensors in a module the size of just one slot.
  • Ideal for powerful yet compact systems.
  • High-speed measurement: 200 µs (minimum sampling period)
  • Optical connector compatibility: FC, SC, MU, and LC
  • Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems.
  • High-performance Dual Channel Sensor
  • The AQ2200-221 is a high-performance yet compact module equipped with two sensors. The module offers high-speed sampling, low polarization dependency, and rich data processing capabilities for improved measurement throughput and low-cost multi-port measurement.

Models matching criteria: 5
  • Optical Connector - Without Optical Connector Adapter
100+ In Stock
$2,262.00 CAD
Does not ship to OH, United States
  • Optical Connector - AQ9335C (MU) Connector Adapter (With a Dust Protection Cap)
50+ In Stock
$2,337.00 CAD
Does not ship to OH, United States
  • Optical Connector - AQ9335C (FC) Connector Adapter (With a Light Shielding Cap)
25+ In Stock
$1,510.00 CAD
Does not ship to OH, United States
  • Optical Connector - AQ9335C (SC) Connector Adapter (With a Light Shielding Cap)
13 In Stock
$631.00 CAD
Does not ship to OH, United States
  • Optical Connector - AQ9335C (LC) Connector Adapter (With a Dust Protection Cap)
10 In Stock
$1,650.00 CAD
Does not ship to OH, United States

Specifications

Channels

  • 2

Connectors

  • FC, SC, LC & MU Optical Connector

Linearity

  • ± 0.02 dB ± 50 PW

Measuring Time

  • 200 µs - Averaging Time (Min. Sampling Intervals)

Output Noise

  • 50 PW or Less - Noise Level

Polarization

  • 0.02 dB Peak-to-Peak Typical - Polarization Dependence

Power

  • -70 to 10 dBm

Sensor, Probe Material

  • InGaAs Ø 3 mm - Detector Typical

Uncertainty

  • ± 3 % - Uncertainty Under Reference Conditions
  • ± 5.0 % ± 50 PW - Total Uncertainty

Wavelength

  • 800 to 1,700 Nm
