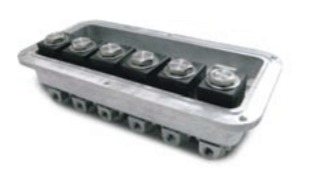

BDB Series Remote Solenoid Enclosure
Part Number: BDB SERIES REMOTE SOLENOID ENCLOSURE Brand: FineTekPrice
$2,409.00 CAD
Stock
8 In Stock
The Enclosure casing is IP65 approved.
Each solenoid pilot, energized in sequence, commands a corresponding Remote pilot type diaphragm valve, by way of 6mm.
Pneumatic tube being less than 3 meters in length.
The enclosure casings are complete with fixing brackets. All common terminals are pre-wired, The solenoid base is made of extruded aluminum, while the cover is in die-cast aluminum.
With anodised surface treatment for protection against aggressive circumstances.
Specifications
Brand
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
Approvals & Certifications
- Ex NEPSI Proof No. GYJ081151 DIP A20T, T6
- Electrical Equipment: EN 60204.1 & VDE 0580
Class
- Coil Insulation: Class F, 155° C (311° F)
Connectors
- Flying Leads
Cover Material
- Aluminum
Diaphragm Material
- NBR
Electrical Connectors
- 3/4” NPT
Enclosure, Body Material
- Aluminum
Environmental Protection
- Explosion-proof
- IP65 (EN 60529)
Fluid
- Air Filtered & Oil Free Air
Length
- Pneumatic Tube Length: 3.2 to 9.8 feet (1 to 3 metres)
Operating Pressure
- psi: 4.3 to 124.7 (kPa: 30 to 860, bar: 0.3 to 8.6)
Operating Temperature
- -20° to 85° C (-4° to 185° F)
PT/PF/PS (JIS) Connection
- 1/4” PT Female
- 1/8” PT Female
