WFE Fork Sensor

Brand: Sick AG

The WFE is a rugged fork sensor that is simple and easy to mount.

Thanks to its reliability and accurate detection, it is suitable for a large number of applications.

The WFE can precisely detect objects up to a size of 0.5 mm with a high switching frequency of 5 kHz.

The sensitivity adjustment, a push-pull output, and the ability to select between light and dark switching make it flexible and convenient to use.

The WFE is enclosed in a rugged hybrid housing (IP67) made from ABS plastic with a carbon steel frame and performs reliably even in harsh environments.

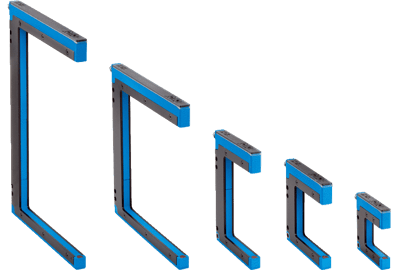

5 different fork widths and several different types of connector are available.

The WFE is therefore well and truly an all-in-one fork sensor solution.
Features
  • Very rugged and durable ABS housing with carbon steel frame and IP67 enclosure rating
  • Quick and easy mounting since the sender and receiver are pre-aligned within the same housing
  • Large selection of fork widths for different application requirements
  • Practical and versatile thanks to an intuitive sensitivity adjustment, push-pull output, and light/dark switching
  • High switching frequency and fine resolution guarantees reliable detection even at high speeds

Models matching criteria: 8
  • Adjustment - Potentiometer, Light/Dark Switching
  • Fork Width / Depth - 180 mm / 120 mm
  • Connection Type - Connector M8, 3-Pin
  • Type - WFE-180120B337
100+ In Stock
$907.00 CAD
Does not ship to OH, United States
  • Adjustment - Potentiometer, Light/Dark Switching
  • Fork Width / Depth - 120 mm / 120 mm
  • Connection Type - Connector M8, 3-Pin
  • Type - WFE-120120B337
100+ In Stock
$1,502.00 CAD
Does not ship to OH, United States
  • Adjustment - Potentiometer, Light/Dark Switching
  • Fork Width / Depth - 80 mm / 60 mm
  • Connection Type - Connector M8, 3-Pin
  • Type - WFE-080060B337
100+ In Stock
$93.00 CAD
Does not ship to OH, United States
  • Adjustment - Potentiometer, Light/Dark Switching
  • Fork Width / Depth - 50 mm / 60 mm
  • Connection Type - Connector M8, 3-Pin
  • Type - WFE-050060B337
50+ In Stock
$971.00 CAD
Does not ship to OH, United States
  • Adjustment - Potentiometer, Light/Dark Switching
  • Fork Width / Depth - 30 mm / 40 mm
  • Connection Type - Connector M8, 3-Pin
  • Type - WFE-030040B337
25+ In Stock
$648.00 CAD
Does not ship to OH, United States
  • Adjustment - No Adjustment Possibility
  • Fork Width / Depth - 30 mm / 40 mm
  • Connection Type - Connector M8, 3-Pin
  • Type - WFE-030040B321
25+ In Stock
$1,437.00 CAD
Does not ship to OH, United States
  • Adjustment - No Adjustment Possibility
  • Fork Width / Depth - 30 mm / 40 mm
  • Connection Type - Cable, Openended, 3-Wire
  • Type - WFE-030040B121
11 In Stock
$1,102.00 CAD
Does not ship to OH, United States
  • Adjustment - Potentiometer, Light/Dark Switching
  • Fork Width / Depth - 30 mm / 40 mm
  • Connection Type - Cable, Openended, 3-Wire
  • Type - WFE-030040B137
2 In Stock
$2,171.00 CAD
Does not ship to OH, United States

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC
  • cULus

Enclosure Rating

  • IP67

Housing Material

  • ABS Plastic
  • Carbon Steel

Fork Width

  • 30 to 180 mm

Fork Depth

  • 40 to 120 mm

MDO

  • 0.5 mm

Light Source

  • LED, Red

Switching Frequency

  • 5 kHz

Response Time

  • 100 µs

Connection Type

  • Cable, Open-ended, 3-Wire, 2 m
  • Connector M8, 3-Pin

Switching Output

  • Push-Pull: PNP/NPN
