Images are representations only.

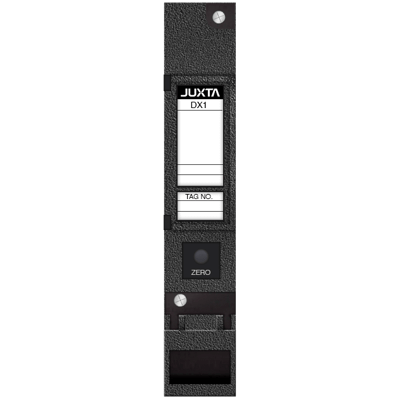

DX1 Input/Output Through Card
Brand: Yokogawa Electric Corporation
The DX1 is a nest-mounting type card whose inputs are combined with the outputs directly. It receives 4-20 mA DC signals from various converters and converts them into 1-5 V DC signals.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 3
- Input - With Input Resistance 250 Ohms
- Output 1 - Direct Connection of Input & Output
50+ In Stock
$106.00 CAD
Does not ship to OH, United States
- Input - With Changeover Switch of Input Resistance 250 Ohms
- Output 1 - Direct Connection of Input & Output
50+ In Stock
$1,634.00 CAD
Does not ship to OH, United States
- Input - Without Input Resistance 250 Ohms
- Output 1 - Direct Connection of Input & Output
50+ In Stock
$1,596.00 CAD
Does not ship to OH, United States
Specifications
Accuracy
- ± 0.1 % of Span (When the Load Resistance is ∞)
Humidity
- 5 to 90 % Relative Humidity, Non-Condensing
Input
- 1-5 Vdc
- 4-20 mA DC
Insulation Resistance
- 100 megaohms or more at 500 Vdc between Input/Output & Power Supply
Mounting
- M4 Screw Terminals
- Nest-Mounting
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 1-5 Vdc
- 4-20 mA DC
Resistance
- 250 ohms - Input Resistance
Supply Voltage
- 500 Vac/minute - Withstand Voltage between Input/Output & Power Supply
