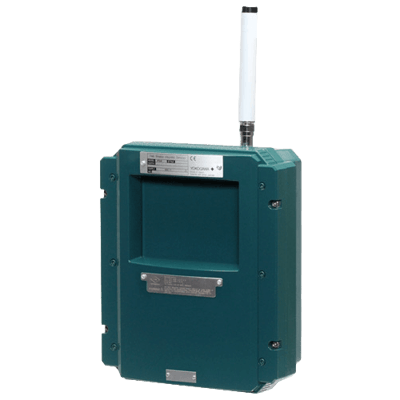

YFGW710 Field Wireless Integrated Gateway
Brand: Yokogawa Electric CorporationThis General Specification (GS) describes the hardware specifications for Field Wireless Integrated Gateway and specifications of attached software.
This product is based on wireless communications standard ISA100.11a for industrial automation of International Society of Automation (ISA).
Specifications
Ambient Temperature Range
- -40° to 60° C (-40° to 140° F)
Approvals & Certifications
- ATEX
- CE
- CSA C22.2 No. 61010-1, Non-Incendive
- EMC - EN 301 489-1, EN 301 489-17, EN 61326-1 Class A, EN 55011 Class A, Group 1, EN 61000-6-2
- FCC
- FM Non-Incendive
- IC
- IEC Ex
Approvals & Certifications
- R & TTE Directive - Radio Spectrum: EN 300 328, Health & Safety: EN 62311, EN 61010-1
Cable Length
- 3.2 to 42.6 feet (1 to 13 metres) - for External Antenna Cable
Cable Type
- Category 5 Cable - for 100Base-TX
Channels
- 15
Communication
- 100Base-FX Communication Interface
- 100Base-TX Communication Interface
- Baud Rate: 100 Mbps Transmission Speed - for 100Base-TX & 100Base-FX
- Baud Rate: 250 Kbps
- Ethernet Network Card
- ISA 100.11a - Communication Protocol
- Modbus/TCP - Communication Protocol
- Proprietary (TCP/IP) Communication Protocol - for Field Wireless Device OPC Server & Management, Configuration
CPU Type
- Intel Core2Duo 2.66 GHz or more High Performance CPU - for Windows® Vista
- Intel Pentium 4 2.8 GHz or more High Performance CPU - for Windows® XP/Server 2003
Display
- 1024 x 768 High Color - for Windows® Vista
- 1024 x 768 High Color - for Windows® XP/Server 2003
Dissipation
- 10 W, Max.
Electrical Connectors
- 1/2” NPT Female
- Blind Plug
- G 1/2” Female
- M20 Female
- RJ45 Connector - for 100Base-TX
Enclosure Finish
- Anti-Corrosion Coating
- Mint Green Paint (Munsell 5.6BG 3.3/2.9 or its Equivalent)
- Polyurethane Paint
Environmental Protection
- IP66
- NEMA 4X
Frequency
- 2,400 to 2,483.5 MHz - License Free ISM Band
Humidity
- 0 to 100 % Relative Humidity Non-Condensing - Operating Humidity
Length
- 100 metres, Max.
- 2 Kilometers, Max.
Materials of Construction
- 316 Stainless Steel - Name Plate & Tag
Mounting
- 2” Pipe Mounting Bracket
Operating Temperature
- -40° to 60° C (-40° to 140° F)
Power
- 11.6 dBm, Max.
Power Supply
- 10-26.4 Vdc
- 24 Vdc
System Requirements
- Windows® Vista/XP/7/Server 2003/Server 2008
Wavelength
- 1,300 Nm Center Wavelength - for 100Base-FX
