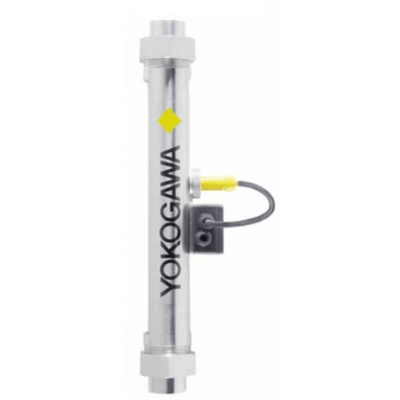

Applications
- Controlling of Water Circuits
- Industrial Gas Measurement
- Visual Fluid Monitoring
Approvals & Certifications
- Certificate of Compliance with the Order According to EN 10204: 2004-2.1
- Flow Table Test for Recalculation + mm-Scale
- Material Certificate for Insertion Parts or Flange Connections According EN 10204: 2004-3.1
- PAMI Test (2 or 4 Test Points)
- Pressure Test Report for Metering System
Approvals & Certifications
- (PED) Directive 97/23/EG
- ATEX: Intrinsically Safe, PTB 03-ATEX-2111
- CE 0344, Ex II 2 G - Bistable Inductive Ring Sensor
- IEC 61508: 2010
- ISO 13849 - Machinery Directive
BSP Connection
- G 1” Female
- G 1/2” Female
- G 1-1/2” Female
- G 2” Female
- G 2-1/2” Female
- G 3/4” Female
Consumption
- 2.2 mA According to DIN EN 60947-5-6 (NAMUR) - Float Above Ring Sensor (Bistable Inductive Ring Sensor)
Diameter
- 0.06” to 2.12” (1.59 to 54.1 mm) - Float
- 0.39” to 3.18” (10 to 81 mm) - Metering Tube
Electrical Connectors
- 2 x 0.14 mm² with Shield 0.4 mm², 2 metre Long - Bistable Inductive Ring Sensor
- LIYY 2 x 0.34 mm², 1 Meter Long - Reed Contact with Bistable Switching
Electrical Rating
- 2 A at 230 V, 40 W/VA - Reed Contact with Bistable Switching
- 2 A at 250 Vac, Max.
Enclosure, Body Material
- AISI 304 Stainless Steel 1.4301
- Polystyrene - Reed Contact with Bistable Switching
Environmental Protection
- Explosion-proof According to Guideline 94/9/EG (-25° to 60° C), Ex ia IIC 2 G T6 - Bistable Inductive Ring Sensor
- Intrinsically Safe According to EN 60079-11 & IEC 60079-11 Chapter 5.7 & ANSI/ISA 60079-11, IIC 2 G T6 - Reed Contact with Bistable Switching
- IP65 - Reed Contact with Bistable Switching
- IP67 - Bistable Inductive Ring Sensor
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - 150# ASME B16.5
- 1-1/2” (DN 40) - PN 40 (EN 1092-2 Form B1)
Flange Size - 1” (DN 25)
- 1” (DN 25) - 150# ASME B16.5
- 1” (DN 25) - PN 40 (EN 1092-2 Form B1)
Flange Size - 1/2” (DN 15)
- 1/2” (DN 15) - 150# ASME B16.5
- 1/2” (DN 15) - PN 40 (EN 1092-2 Form B1)
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150# ASME B16.5
- 2” (DN 50) - PN 40 (EN 1092-2 Form B1)
Flow Rate
- 0.002 to 10,000 L/hr (0.002 L/hr to 10 m³/hour) - Water at 20° C (68° F)
- 0.1 to 1,60,00 L/hr (0.1 L/hr to 160 m³/hour) - Air at 20° C (68° F), 1 bar Absolute
Length
- 14.76” (375 mm) - Installation Length (Thread & Clamp Connection)
- 16.7” (425 mm) - Installation Length (Flange Connection)
- Tube Length Typical: 300 mm (11.81”)
Materials of Construction
- AISI 316Ti Stainless Steel, 1.4542 - Float
- PFA - Stopper
- PTFE - Float
- PVDF - Stopper, Float (FDA Conform)
- Titanium - Float
Maximum System Pressure
- psi: 232.1 (kPa: 1,600, bar: 16)
Measurement Accuracy
- 1.6 % According to Directive VDI/VDE 3513
- 2.5 % According to Directive VDI/VDE 3513
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1-1/2” NPT Female
- 2” NPT Female
- 2-1/2” NPT Female
- 3/4” NPT Female
Nut & Bolt Material
- 316 Stainless Steel - Nut
- Galvanized Steel - Nut
Power Supply
- 115 Vac, ± 10 %, 45-65 Hz - Transmitter Relay
- 230 Vac, ± 10 %, 45-65 Hz - Transmitter Relay
- 24 Vdc, ± 25 % - Transmitter Relay
- 4.5-15 Vdc - Bistable Inductive Ring Sensor
Process Connection Material
- 316L Stainless Steel - Threads G, NPT, Flange EN/ASME , Clamp ISO 2852
- Brass - Valve (Inner Thread, Double Fitting is Attached, Not for FDA)
- Stainless Steel - Valve (Inner Thread, Double Fitting is Attached, Not for FDA)
Process Temperature
- -25° to 100° C (-13° to 212° F)
Relay Output
- 1 or 2 Potential Free Changeover Contacts - Transmitter Relay
Size
- Clamp: 1/2” to 2-1/2” (ISO 2852)
Switch Type
- Bistable Inductive Ring Sensor
- Transmitter Relay According to DIN EN 60947-5-6 (NAMUR)
Temperature Range
- -10° to 70° C (-14° to 158° F) - Reed Contact with Bistable Switching
- -25° to 65° C (-13° to 149° F) for Non- Explosion-proof - Bistable Inductive Ring Sensor
Turndown
- 10:1 - P Metering Tube
- 20:1 - L Metering Tube
