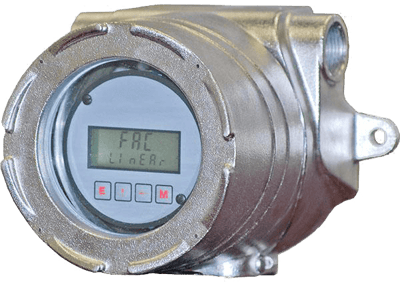

BAT RAT-M (BATRATM) Battery Powered Flow Rate & Total Indicator
Brand: Kessler-Ellis Products (KEP)
Featuring 4.5 digits of rate and 8 digits of total, the BAT RAT-M is a battery powered indicator with flow rate alarm output.
It is capable of accepting magnetic pickup, DC pulse and switch closure inputs. The unit can be ordered with an optional 4-20mA output.
The BAT RAT-M uses the 4-20mA loop to provide power when this output is used.
Features- Magnetic Pickup Input, Contact Closure Input or DC Pulse Input (Optically Isolated).
- Displays Rate & Total Simultaneously.
- 4 1/2 Digit Rate Display, 8 Digit Totalizer Display.
- 4-20mA Analog Output.
- Powered From Internal Battery, External DC Supply or 4-20 ma Output Loop.
- 10 Pt. Linearization.
- Isolated Transistor Alarm Output.
- Intrinsically Safe Option.
