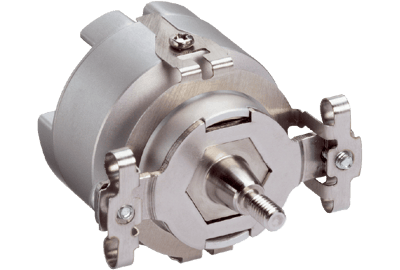

Images are representations only.
CKS36 Motor Feedback Systems Rotary Incremental with Commutation
Brand: Sick AGThe CKS36 motor feedback system is a member of a new generation of optical motor feedback systems with the mini-disk technology: A very small code disk of only 2 mm radius allows for holistic scanning while at the same time providing for a high degree of resistance to shock and vibration.
In this the eccentricity errors of the code disk and shaft that are unavoidable with conventional systems are compensated for by the system.
At a glance
- Output driver for incremental and commutation signals as per EIA 422
- Resolution of up to 2,048 lines per revolution
- Commutation signals up to 32 pole pairs
- Individual programming of the line count, pole pair number and zero pulse width
- High resistance to shock and vibration
- System compensates for eccentricity errors due to holistic scanning
- Allows for high angular speeds
- The CKS36's small dimensions allows manufacturers to considerably reduce the size of their motors
- Programmable version for a reduced product variety
- High level of compatibility thanks to standard interface
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 19
100+ In Stock
$1,332.00 CAD
Does not ship to OH, United States
100+ In Stock
$2,470.00 CAD
Does not ship to OH, United States
100+ In Stock
$1,745.00 CAD
Does not ship to OH, United States
100+ In Stock
$2,275.00 CAD
Does not ship to OH, United States
100+ In Stock
$699.00 CAD
Does not ship to OH, United States
100+ In Stock
$1,363.00 CAD
Does not ship to OH, United States
50+ In Stock
$139.00 CAD
Does not ship to OH, United States
50+ In Stock
$128.00 CAD
Does not ship to OH, United States
50+ In Stock
$1,185.00 CAD
Does not ship to OH, United States
50+ In Stock
$255.00 CAD
Does not ship to OH, United States
50+ In Stock
$964.00 CAD
Does not ship to OH, United States
50+ In Stock
$655.00 CAD
Does not ship to OH, United States
25+ In Stock
$1,278.00 CAD
Does not ship to OH, United States
25+ In Stock
$247.00 CAD
Does not ship to OH, United States
25+ In Stock
$429.00 CAD
Does not ship to OH, United States
20 In Stock
$1,006.00 CAD
Does not ship to OH, United States
18 In Stock
$647.00 CAD
Does not ship to OH, United States
15 In Stock
$564.00 CAD
Does not ship to OH, United States
9 In Stock
$754.00 CAD
Does not ship to OH, United States
Specifications
Brand
Certifications & Approvals
- EAC
Type
- For Integration
Communication Interface
- Incremental
Pulses Per Revolution
- 128 to 2,048
Mechanical Interface
- Tapered Shaft, 3 mm
Connection Type
- Male Connector, 14-Pin, Axial
