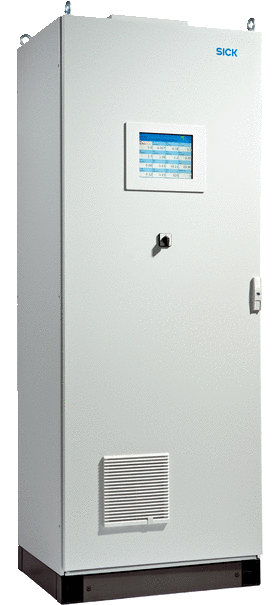

SICK FTIR Multicomponent Analysis System for Continuous Flue Gas Monitoring
Price
$1,065.00 CAD
Stock
50+ In Stock
The FTIR measuring principle allows the simultaneous determination of more than 12 measuring components – tailor-made for the particular requirements of the customer.
The MCS100FT FTIR analyzer system with its heated measuring cell enables the monitoring of hydrogen fluoride limits as requested by legislation.
The MCS100FT is equipped with an oxygen sensor as standard and can be supplemented with a total hydrocarbon analyzer.
With its reliable measuring technology, its easy operation and low maintenance requirements, the MCS100FT provides a solution that offers unequalled opportunities.
Features- Proper HF limit value monitoring
- Only one analyzer for more than12 measuring components
- Easy integration into the customer network environment
- Long maintenance interval of 6 months for many measuring components
- Type approved measurement of greenhouse gases such as N2O, CH4 and CO2
- Low maintenance requirements
Specifications
Brand
Certifications & Approvals
- CE
Environmental Protection
- IP43
- IP54 Optional
Interface
- RS-422/-485
- Ethernet
Communication
- Ethernet TCP/IP
- Modbus
- OPC
Indication
- LC Display
- Status LEDs: “Power”, “Maintenance” and “Fault”
Ambient Humidity
- ≤ 80 % Non-Condensing
Response Time
- ≤ 200 s
- FID: ≤ 45 s
Process Temperature
- ≤ 1,300° C
Process Pressure
- 900 to 1,100 hPa
Ambient Temperature
- 5° to 35° C
- With Cooling Device: -5° to 50° C
Storage Temperature
- -20° to 60° C
- Emission monitoring in waste incineration plants
- Effective HF limit value monitoring, e. g., in aluminum production
- Monitoring of gaseous emissions in cement plants or power stations
