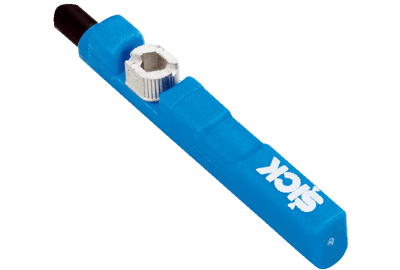

MZC1 Sensor for C-Slot Cylinders
Brand: Sick AGThe MZC1 magnetic cylinder sensor from SICK is the flexible solution for detecting the piston position in pneumatic actuators. The MZC1 can be mounted directly into all cylinders with standard C-slots. SICK also has an extensive range of adapters which enable the MZC1 to be used with other cylinder types.
The MZC1 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder. Furthermore, the MZC1 is available in a range of variants up to an enclosure rating of IP 69K. This ensures the sensor has a long service life and reduces maintenance costs.
At a glance
- Can be used in all standard cylinders, linear slides, and grippers using the C-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders
- Drop-in mounting from above simplifies handling and assembly
- Combined fixing screw (hexagon socket screw and slotted screw)
- LED for indicating the output state
- Enclosure ratings: IP 67, IP 68, IP 69K
- A sensor for a wide range of applications: The sensor design fits into all standard C-slots used around the world, regardless of the cylinder profile or make
- Quick and easy mounting using an Allen key or flat-head screwdriver
- Low maintenance costs as the sensor is resistant to shock and vibration, meaning it does not slide about in the slot
- Saves time on initial installation and when replacing devices as the sensor can be easily inserted into the slot from above. The end caps of the cylinder do not have to be removed.
- Very rugged housing with enclosure rating IP 67, IP 68, or IP 69K extends the service life of the sensor
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 27
- Connection Type - Cable with Connector M8, 2-pin, 0.3 m
- Type - MZC1-2V2DS-KP0
100+ In Stock
$2,117.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 5 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2Z2PS-KUB
100+ In Stock
$611.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 2-wire, 3 m
- Type - MZC1-2V2DS-KUA
100+ In Stock
$2,121.00 CAD
Does not ship to OH, United States
- Connection Type - 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KR0S19
50+ In Stock
$2,474.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 5 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KUB
50+ In Stock
$674.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M12, 3-pin, 1 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KQD
50+ In Stock
$1,529.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M12, 3-pin, 0.3 m
- Switching Output - NPN
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2NS-KQ0
50+ In Stock
$258.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 2 m
- Switching Output - PNP
- Output Fuction - NC
- Type - MZC1-4V3P0-KU0
50+ In Stock
$1,434.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KR0S10
50+ In Stock
$1,716.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, 0.3 m
- Switching Output - NPN
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2NS-KP0
50+ In Stock
$375.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 2-wire, 5 m
- Type - MZC1-2V2DS-KUB
50+ In Stock
$1,834.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 2 m
- Switching Output - NPN
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-4V3NS-KU0
50+ In Stock
$1,529.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 5 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KWB
25+ In Stock
$1,177.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.5 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KRD
25+ In Stock
$247.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
- Switching Output - NPN
- Output Fuction - NO
- Type - MZC1-2V2NS-KR0
25+ In Stock
$2,439.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, 0.3 m
- Switching Output - NPN
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-4V3NS-KP0
25+ In Stock
$1,573.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M12, 3-pin, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KQ0
25+ In Stock
$2,533.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 2 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-4V3PS-KU0
25+ In Stock
$479.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 2 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KU0
25+ In Stock
$427.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-4V3PS-KR0
25+ In Stock
$754.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KP0
25+ In Stock
$1,341.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-4V3PS-KP0
25+ In Stock
$863.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 3-pin, with Knurled Nuts, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KR0
25+ In Stock
$343.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 2 m
- Switching Output - NPN
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2NS-KU0
23 In Stock
$224.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M8, 2-pin, with Knurled Nuts, 0.3 m
- Type - MZC1-2V2DS-KR0
22 In Stock
$997.00 CAD
Does not ship to OH, United States
- Connection Type - Cable with Connector M12, 3-pin, 0.3 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-4V3PS-KQ0
15 In Stock
$2,515.00 CAD
Does not ship to OH, United States
- Connection Type - Cable, 3-wire, 2 m
- Switching Output - PNP
- Output Fuction - NO
- Electrical Wiring - DC 3-wire
- Type - MZC1-2V2PS-KW0
8 In Stock
$546.00 CAD
Does not ship to OH, United States
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus
Enclosure Rating
- IP67
- IP68
- IP69K
Housing Length
- 23.7 mm
Supply Voltage
- 10-30 Vdc
Output Function
- NO / NC
Special Features
- Sensor Element Distance: 7.95 mm
- 2 x Label Holders Attached
- 1 x Label Holders Attached
Cylinder Type with Adapter
- SMC Rail CDQ2
- SMC Rail ECDQ2
- Round Body Cylinder
- Profile Cylinders and Tie-Rod Cylinders
Cable Length
- 0.3 to 3 m
Cable Material
- PUR
- PVC
Overrun Distance
- 4 mm
- 7 mm
Magnetic Field Sensitivity, Minimum
- 2.2 mT
- 4.25 mT
Connection Type
- Cable, 2-Wire
- Cable, 3-Wire
- Cable with Connector M8, 2-Pin, with Knurled Nuts
- Cable with Connector M8, 2-Pin
- Cable with Connector M8, 3-Pin
- Cable with Connector M8, 3-Pin, with Knurled Nuts
- Cable with Connector M12, 3-Pin
Electrical Wiring
- DC 2-Wire
- DC 3-Wire
