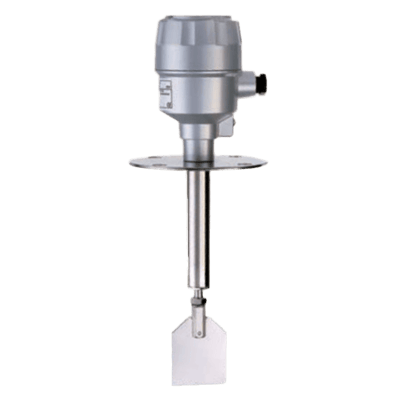

SE100 Series Rotary Paddle Level Switch

Brand: FineTek
Request Information
Favorite

The purpose of the rotary paddle level switch is to detect the presence of solid/powdery material in most kinds of tanks, bins and containers.

The unit is usually located through a bin wall at the top, middle or low level of a bin.

During normal operation (no material present) a synchronous motor rotates the paddle at RPM.

When this paddle rotation is impeded by material, surrounding the paddle, motor will stall and cause the Micro-switch to change state (indicating an alarm or control).
Features
  • Airtight sealed device
  • Outdoor and strenuous environment application Stable and reliable performance
  • Lightweight and easy to install Practically designed to allow maintenance, checks and replacement
  • Not necessary to remove the complete set from the tank

Specifications

Brand

Applications

  • Agriculture & Fodder Mills/Depots
  • Cement as well as Ceramics
  • Chemicals & Fertilizer
  • Food & Beverage
  • Pharmaceutical
  • Plastics & Synthetics
  • Power Plants
  • Various Incinerators

Approvals & Certifications

  • CE

BSP Connection

  • 1” BSP Male
  • 1-1/2” BSP Male
  • 1-1/4” BSP Male
  • 2” BSP Male
  • 2-1/2” BSP Male
  • 3” BSP Male
  • 4” BSP Male
  • 5” BSP Male
  • 6” BSP Male

Conduit Connection

  • 1/2” PF Female

Consumption

  • Power Consumption: 11 W (24 Vdc)
  • Power Consumption: 3 W

Density Range

  • Material Density: 0.5 g/cm³

Electrical Rating

  • Contact Capacity: SPDT, 5 A at 250 Vac

Enclosure, Body Material

  • ADC-12 Aluminum

Environmental Protection

  • IP65

Materials of Construction

  • Paddle Material: Stainless Steel

Media

  • Solids

Mounting Position

  • Horizontal
  • Vertical

NPT Connection

  • 1” NPT Male
  • 1-1/2” NPT Male
  • 1-1/4” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male
  • 4” NPT Male
  • 5” NPT Male
  • 6” NPT Male

Operating Temperature

  • -20° to 200° C (-4° to 392° F)

PT/PF/PS (JIS) Connection

  • 1” PF Male
  • 1” PT Male
  • 1-1/2” PF Male
  • 1-1/2” PT Male
  • 1-1/4” PF Male
  • 1-1/4” PT Male
  • 2” PF Male
  • 2” PT Male
  • 2-1/2” PF Male
  • 2-1/2” PT Male
  • 3” PF Male
  • 3” PT Male
  • 4” PF Male
  • 4” PT Male
  • 5” PF Male
  • 5” PT Male
  • 6” PF Male
  • 6” PT Male

Sensor, Probe Style

  • Rotary Paddle

Speed

  • Rotary Speed: 1 rpm

Supply Voltage

  • 110 Vac
  • 220 Vac
  • 24 Vac
  • 24 Vdc, 50/60 Hz
  • 240 Vac

Switch Type

  • SPDT

Voltage

  • Insulation Test Voltage: 2,500 V

Documentation

Data Sheets
