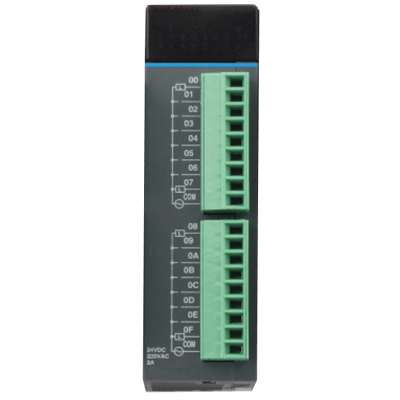

HE599DIQ512, HE599DQM502/602 Relay Out & Relay Output Module
Brand: HornerSmartRail I/O expands the I/O capacity of OCS all-in-one controllers.
SmartRail uses fieldbus technology, and can be installed locally or thousands of meters away.
Features- Highly expandable and scalable with several communication base options
- SmartRail modular I/O allows for granular digital and Analog I/O configurations to suit any specification without wasted space or hardware cost
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 3
- Model - DQM502 (8 pt)
100+ In Stock
$326.00
CAD
Does not ship to OH, United States
- Model - DQM602 (16 pt)
100+ In Stock
$2,476.00
CAD
Does not ship to OH, United States
- Model - DIQ512 (8 + 8 pt)
14 In Stock
$1,894.00
CAD
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- CE
- UL Compliance Class I, Div. 2, Groups A, B, C, D
Consumption
- Backplane Power Consumed @ 5 V: 230 mA
- Backplane Power Consumed @ 5 V: 280 mA
- Backplane Power Consumed @ 5 V: 4-20 mA
Current
- Off Leakage Current 0.1 mA or Less
- Rated Input Current: About 4 mA
Humidity
- 5 to 95 % - Non-Condensing
Input Power
- 24 Vdc (20.4-28.8 Vdc)
Isolation
- 500 Vdc or Greater
Operating Temperature
- 0° to 55° C (32° to 131° F)
Operating Voltages
- OFF: 19 Vdc (19 Vdc (< 3 mA)
Output
- Minimum Output: 5 Vdc, 1 mA
- Rated Output Current: 2 A/Point
- Rated Output Current: 5 A/Common
Output Power
- Maximum
Resistance
- Input Resistance: 5.6 Kilohms Approximately
Response Time
- 1 to 100 milliseconds
- 10 milliseconds OFF > ON
- 12 milliseconds, ON > OFF
Storage Temperature
- -25° to 70° C (-13° to 158° F)
Torque
- 0.22 to 0.25 Nm (1.95 to 2.21 In/Lbs)
Version / Leadwires
- 16 to 28 AWG
