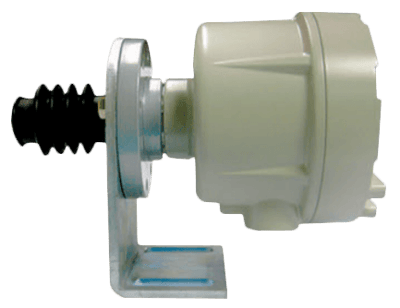

Images are representations only.
Price
$457.00 CAD
Stock
100+ In Stock
EDX10 is a brand new speed monitoring device exclusively designed for a belt conveyor, which monitors the rotation speed by using the optoelectronic switch or magnetic induction part.
During this process, it provides an output contact SPDT for alarm or control.
The alarm setting is determined by the scale on the adjustment knob, which is convenient and fast.
Based on the conventional Analog design, it uses a simple, stable and low-cost circuit, which makes it economical.
Features- The alarm point setting of the speed monitor adopts a knob type operation, which is simple and fast.
- Based on the field application requirements, you may select the startup delay alarm function, so as to prevent false alarm when the device is accelerating at startup.
- Status indicator is clear, so user may determine whether the current rotation speed is normal.
- Universal relay output type is used, which doesn’t require complicated wiring procedure.
- The output delay function can avoid false alarm when the rotation speed is fluctuating at the moment of material dropping.
- Contact and non-contact structural design are available, so user may select proper installation type based on the field requirements.
Specifications
Brand
Approvals & Certifications
- CE
Cable Entry
- 1/2” NPT
Connection Style
- M10 Screw & 1” PF Screw
Delay Time
- Startup Delay Time: 0 or 30 seconds Switch
Electrical Rating
- 5 A at 250 Vac
- 5 A at 30 Vdc
Enclosure, Body Material
- Aluminum Alloy, Baked Finish
Environmental Protection
- IP65
Materials of Construction
- Rubber Bellow
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Power Supply
- 110 Vac, 50/60 Hz
- 220 Vac ± 20 %, 50/60 Hz
- 24 Vdc ± 20 %
Reproducibility
- Reproducibility of Alarm Setting: ± 5 %
Speed
- 0 to 150 rpm
Switch Type
- Relay Output: SPDT
