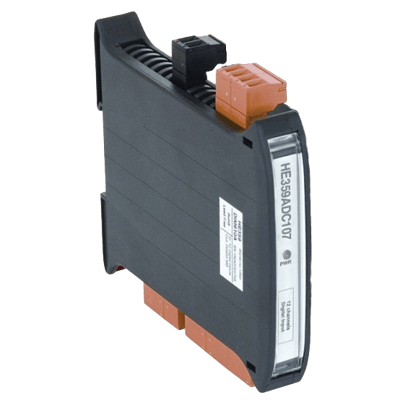

HE359ADC107/207 ±10 V Analog Input Module

Brand: Horner

SmartMod I/O is a RTU/Modbus based I/O system designed to fill-out the I/O complement for applications utilizing XLe, LX, or any other OCS/RCS family controller.

As many as 31 SmartMod I/O modules may be daisy chained on a single RS-485 link.

SmartMod I/O is DIN-rail mounted, powered from 10-30 Vdc, and features 2,000 Vac optical isolation.

Module ADC107
  • 4-Channel Analog Inputs
  • Voltage (±10 Vdc) 1 mV resolution
  • 2,000 Vac isolation (ch-RS485 & ch-power)

Module ADC207
  • 8-Channel Analog Inputs
  • Voltage (±10 Vdc) 1 mV resolution
  • 2,000 Vac isolation (ch-RS-485 & ch-power)

Models matching criteria: 2
  • Channels - 8
100+ In Stock
$1,283.00 CAD
Does not ship to OH, United States
  • Channels - 4
14 In Stock
$1,596.00 CAD
Does not ship to OH, United States

Specifications

Brand

Approvals & Certifications

  • CE
  • UL

Channels

  • 4
  • 8

Communication

  • Modbus/RTU (Binary)
  • RS-485 Half-Duplex

Humidity

  • 0 to 90 % Non-Condensing

Input

  • Ranges: ± 10 V

Input Impedance

  • > 100 kiloohms

Isolation

  • 2000 Vac 50 Hz, 1 Minute
  • 2000 Vac for 60 seconds (Input/Power & Input/Comms)

Linearity

  • ± 0.1 %

Operating Temperature

  • -10° to 60° C (14° to 140° F)

Power Requirement

  • Steady State: 30 mA at 24 Vdc, Typical

Power Supply

  • External Voltage: 10-30 Vdc

Resolution

  • Approximately 16-bits

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
