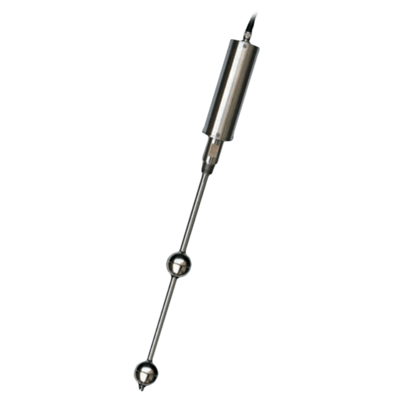

Images are representations only.

EG37 Series Magnetostrictive Level Transmitter

Brand: FineTek
Request Information
Favorite

The FineTek magnetostrictive level transmitter identifies the level of liquids and solutions with high precision and reliability.

This versatile sensor is ideal for continuous level measurement of a wide range of liquids.

The sensor has a loop power supply and provides direct Analog or digital output to the user interface.

The FineTek magnetostrictive level sensor has proven itself due to its durability in a wide range of temperatures, pressures and operating conditions as well as its low maintenance nature.
Features
  • Absolute positioning output and no calibration requiredafter power failure
  • Stability and reliablity
  • Ease installation without calibration & maintenance
  • Prompt response time, high resolution & high accuracy
  • Durable structure, dust-proof, withstands high pressure
  • Oil/water dual level indication
  • The maximum operation temperature is 200° C (392° F)
  • EG37 adopted loop power structure for wire saving
  • Housing of EG3 is IP67 (enclosure) / IP69K (probe)
  • Support HART / RS485 and 4-20 mA / voltage output

Specifications

Brand

Accuracy

  • ± 0.1° C (± 0.18° F)

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Applications

  • Chemical Processing
  • Crude Oil, Petroleum's & Diesels
  • Dams, Water Barriers, Wastewater Treatment Plants
  • Food & Beverages, Breweries
  • Liquefied Natural Gas (LNG)
  • Pharmaceutics & Medication
  • Power Plants, Marine & Shipbuilding
  • Tooling or Alignment Position for Processing Machines

Approvals & Certifications

  • NEPSI Proof No. GYB101836X, Ex ia IIB T2~T6
  • PTB Proof13-ATEX-2016X, Ex II 1 G Ex ia IIB T3~T6

BSP Connection

  • 1” BSP Male (25 A)
  • 1/2” BSP Male (25 A)
  • 1-1/2” BSP Male (40 A)
  • 1-1/4” BSP Male (32 A)
  • 2” BSP Male (50 A)
  • 2-1/2” BSP Male (65 A)
  • 3” BSP Male (80 A)
  • 3/4” BSP Male (20 A)
  • 4” BSP Male (100 A)
  • 5” BSP Male (125 A)
  • 6” BSP Male (150 A)

Cable Length

  • 6.56 feet (2 metres)

Communication

  • HART 7.3
  • RS-485

Conduit Connection

  • M12

Enclosure, Body Material

  • 304 Stainless Steel
  • 316 Stainless Steel

Environmental Protection

  • Enclosure: IP67
  • Probe: IP69K

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - JIS 5K
  • 1-1/2” (DN 40) - PN 10
  • 1-1/2” (DN 40) - PN 16
  • 1-1/2” (DN 40) - PN 25
  • 1-1/2” (DN 40) - PN 40

Flange Size - 1-1/4” (DN 32)

  • 1-1/4” (DN 32) - 150#
  • 1-1/4” (DN 32) - 300#
  • 1-1/4” (DN 32) - JIS 10K
  • 1-1/4” (DN 32) - JIS 5K
  • 1-1/4” (DN 32) - PN 10
  • 1-1/4” (DN 32) - PN 16
  • 1-1/4” (DN 32) - PN 25
  • 1-1/4” (DN 32) - PN 40

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - JIS 5K
  • 1” (DN 25) - PN 10
  • 1” (DN 25) - PN 16
  • 1” (DN 25) - PN 25
  • 1” (DN 25) - PN 40

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 300#
  • 1/2” (DN 15) - JIS 10K
  • 1/2” (DN 15) - JIS 5K
  • 1/2” (DN 15) - PN 10
  • 1/2” (DN 15) - PN 16
  • 1/2” (DN 15) - PN 25
  • 1/2” (DN 15) - PN 40

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#
  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 5K
  • 2-1/2” (DN 65) - PN 10
  • 2-1/2” (DN 65) - PN 16
  • 2-1/2” (DN 65) - PN 25
  • 2-1/2” (DN 65) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 5K
  • 2” (DN 50) - PN 10
  • 2” (DN 50) - PN 16
  • 2” (DN 50) - PN 25
  • 2” (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 5K
  • 3” (DN 80) - PN 10
  • 3” (DN 80) - PN 16
  • 3” (DN 80) - PN 25
  • 3” (DN 80) - PN 40

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - JIS 10K
  • 3/4” (DN 20) - JIS 5K
  • 3/4” (DN 20) - PN 10
  • 3/4” (DN 20) - PN 16
  • 3/4” (DN 20) - PN 25
  • 3/4” (DN 20) - PN 40

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 5K
  • 4” (DN 100) - PN 10
  • 4” (DN 100) - PN 16
  • 4” (DN 100) - PN 25
  • 4” (DN 100) - PN 40

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#
  • 5” (DN 125) - 300#
  • 5” (DN 125) - JIS 10K
  • 5” (DN 125) - JIS 5K
  • 5” (DN 125) - PN 10
  • 5” (DN 125) - PN 16
  • 5” (DN 125) - PN 25
  • 5” (DN 125) - PN 40

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 5K
  • 6” (DN 150) - PN 10
  • 6” (DN 150) - PN 16
  • 6” (DN 150) - PN 25
  • 6” (DN 150) - PN 40

Fluid Specific Gravity

  • 0.50 to 0.90

Materials of Construction

  • Float: 304 Stainless Steel
  • Float: 316 Stainless Steel
  • Float: NBR (Black)
  • Float: Polypropylene (PP Grey/Black)

Measuring Range

  • 2 to 216” (50 to 5,500 mm)

Non-Linearity

  • ± 0.05 % of Full Scale or ± 1.0 mm, whichever is greater

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1-1/2” NPT Male
  • 1-1/4” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male
  • 3/4” NPT Male
  • 4” NPT Male
  • 5” NPT Male
  • 6” NPT Male

Operating Pressure

  • psi: 435.1 (kPa: 3,000, bar: 30) - Max.
  • psi: 72.5 (kPa: 500, bar: 5) - Max.

Operating Temperature

  • -40° to 200° C (-40° to 392° F)

Output

  • 20-4 mA
  • 4-20 mA, 2-Wire

Power Supply

  • 2-Wire: 18-30 Vdc
  • 4-Wire: 12-30 Vdc
  • Explosion-proof: 18-28 Vdc

Pressure Range

  • bar: 0 to 30
  • kPa: 0 to 3,000
  • psi: 0 to 435.1

PT/PF/PS (JIS) Connection

  • 1” PF Male
  • 1” PT Male
  • 1/2” PF Male
  • 1/2” PT Male
  • 1-1/2” PF Male
  • 1-1/2” PT Male
  • 1-1/4” PF Male
  • 1-1/4” PT Male
  • 2” PF Male
  • 2” PT Male
  • 2-1/2” PF Male
  • 2-1/2” PT Male
  • 3” PF Male
  • 3” PT Male
  • 3/4” PF Male
  • 3/4” PT Male
  • 4” PF Male
  • 4” PT Male
  • 5” PF Male
  • 5” PT Male
  • 6” PF Male
  • 6” PT Male

Repeatability

  • ± 0.004 % of Full Scale

Sensor, Probe Material

  • 304 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel

Stem Length

  • 2 to 216” (50 to 5,500 mm)

Temperature Coefficient

  • ± 100 ppm/°C
  • ± 150 ppm/°C - High Temperature Version

Wetted Materials

  • 304 Stainless Steel

  • Petrochemical Industries
  • Marine and Shipping
  • Food and Beverage Production
