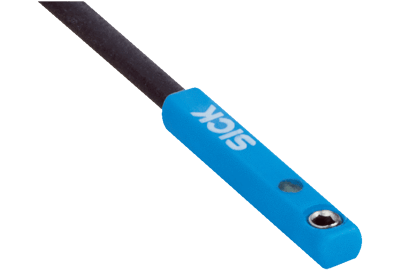

MZC2 Sensor for C-Slot Cylinders
Brand: Sick AGThe MZC2 magnetic cylinder sensor detects the piston position in pneumatic grippers and pneumatic miniature cylinders. Thanks to its short design, the MZC2 is particularly well-suited for the C-slots of very small pneumatic actuators as used in handling and assembly, robotics or the electronics industry.
The sensor is simply inserted into the C-slot and can be quickly and safely fastened to the cylinder. The sensor is fully recessed in the slot.
Thanks to the choice of two housing variants, the MZC2 fits in a wide range of C-slots of various manufacturers.
At a glance
- Short housing (19.5 mm) for use in pneumatic grippers and miniature cylinders
- Fits in all common C-slots, e.g. from SMC, Bimba, Schunk, Zimmer and Festo
- Short, precise switching point, ideal for applications with small stroke
- LED for indicating the output state
- IP67 enclosure rating
- Sensor is fully recessed in the slot
- Short housing saves installation space, thereby increasing system efficiency
- Short switching point optimized for gripper applications increases process efficiency due to higher PSDI times
- Thanks to the choice of two different housing variants, the sensor fits into all common C-slots, regardless of the cylinder profile or make.
- Quick and easy insertion of the sensor into the slot from above
- The rugged mounting holds the sensor in the required position, even when exposed to shock and vibration, and increases reliability
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 12
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable, 3-Wire, 2 m
- Switching Output - PNP
- Type - MZC2-1V7PS-FU0
100+ In Stock
$446.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - SMC Bimba Schunk
- Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - PNP
- Type - MZC2-1V7PS-SR0
100+ In Stock
$909.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - PNP
- Type - MZC2-1V7PS-FR0
50+ In Stock
$2,329.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - SMC Bimba Schunk
- Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - NPN
- Type - MZC2-1V7NS-SR0
50+ In Stock
$1,095.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - SMC
- Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - PNP
- Type - MZC2-1V7PS-SRX
50+ In Stock
$2,413.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable, 3-Wire, 2 m
- Switching Output - NPN
- Type - MZC2-1V7NS-FU0
25+ In Stock
$1,173.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable, 3-Wire, 5 m
- Switching Output - PNP
- Type - MZC2-1V7PS-FUB
25+ In Stock
$1,794.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - SMC Bimba Schunk
- Connection Type - Cable with Connector M12, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - PNP
- Type - MZC2-1V7PS-SQD
25+ In Stock
$657.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - PNP
- Type - MZC2-1V7PS-FRX
25+ In Stock
$729.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - SMC Bimba Schunk
- Connection Type - Cable, 3-Wire, 2 m
- Switching Output - NPN
- Type - MZC2-1V7NS-SU0
24 In Stock
$1,341.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - SMC Bimba Schunk
- Connection Type - Cable, 3-Wire, 2 m
- Switching Output - PNP
- Type - MZC2-1V7PS-SU0
16 In Stock
$1,036.00 CAD
Does not ship to OH, United States
- Preferred Manufacturer Slot - Festo
- Connection Type - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Switching Output - NPN
- Type - MZC2-1V7NS-FR0
14 In Stock
$1,144.00 CAD
Does not ship to OH, United States
Specifications
Brand
Certifications & Approvals
- CE
- ATEX
- cULus
- EAC
Enclosure Rating
- IP67
Output Function
- NO
Special Features
- Completely Embedded Mounting in the Slot, Providing Protection
Cylinder Type with Adapter
- SMC Rail CDQ2
- SMC Rail ECDQ2
Housing Length
- 19.5 mm
Supply Voltage
- 10-30 Vdc
Ambient Operating Temperature
- -25° to 75° C
- -25° to 55° C
Switching Output
- PNP
- NPN
Cable Length
- 0.5 to 5 m
Connection Type
- Cable, 3-Wire
- Cable with Connector M8, 3-Pin, with Knurled Nuts
- Position detection in pneumatic grippers: Sensor detects whether the gripper piston is open or closed
- End position detection in pneumatic miniature cylinders
- Industries: Electronics, handling and assembly (e.g. small part assembly), robotics and packaging
