Images are representations only.

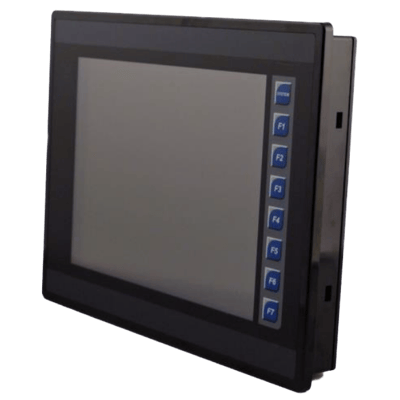

XL10e OCS Base Controller
Brand: Horner
Specifications
- All units feature a built-in logic engine, operator interface, networking and I/O.
- Logic engine features 256 KB of application memory with a 0.2 mS/K logic scan.
- Operator Interface features include:
- 640 x 480 LCD graphics display with a high resolution resistive touchscreen
- 7 function keys and a system key
- USB slave port (mini-B 5pin) is available for programming USB master port (A) is available for exchanging files with USB FLASH drives
- Two (2) RS-232/485 ports support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols
- Networking features an integrated CsCAN port
- All units feature a Removable Mass Storage device
- The XL10e includes a factory installed Ethernet port, providing full Ethernet functionality, including SmartRail I/O (Ethernet), HTTP web serving, FTP file transfer, Modbus TCP/IP Master/Slave, EGD, and more.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 5
- Model - 12 DC in (4HSC), 6 Relay Out, 4-Analog In
50+ In Stock
$2,453.00
CAD
Does not ship to OH, United States
- Model - 24 DC In (4HSC), 16 DC Out (2 PWM), 2 Analog In
50+ In Stock
$1,293.00
CAD
Does not ship to OH, United States
- Model - Without I/O
25+ In Stock
$1,483.00
CAD
Does not ship to OH, United States
- Model - 12 DC in (4HSC), 12 DC Out (2 PWM), 2 Analog In
24 In Stock
$1,963.00
CAD
Does not ship to OH, United States
- Model - 12 DC in (4HSC), 12 DC Out (2 PWM), 2 Universal Analog in (T/C, RTD, mV, mA, V), 2 Analog Out ( mA, V)
11 In Stock
$2,558.00
CAD
Does not ship to OH, United States
Specifications
Brand
Accuracy
- ± 35 ppm, Max.
Approvals & Certifications
- CE
- UL
Communication
- Ethernet 10/100 Mbps
- Micro SD Card Slot
- RS-232, RS-485
- SmartBlock I/O
- SmartRail I/O
- SmartStack I/O
- SmartStix I/O
- USB
Display
- 10.4” VGA TFT (550 Nit Typical)
Environmental Protection
- NEMA 1
Humidity
- 5 to 95 % - Non-Condensing
Operating Temperature
- -10° to 60° C (14° to 140° F)
Power
- 10-30 Vdc
Power Requirement
- Inrush 15 A for < 1 millisecond at 12 Vdc- DC Switched
- Inrush 2.5 A for 1 millisecond at 24 Vdc- AC Switched
- Inrush 25 A for < 1 millisecond at 24 Vdc - DC Switched
- Steady State 1.3 A at 12 Vdc
- Steady State 650 mA at 24 Vdc
Resolution
- Screen Resolutions: 640 x 480
Storage Temperature
- -30° to 70° C (-22° to 158° F)
