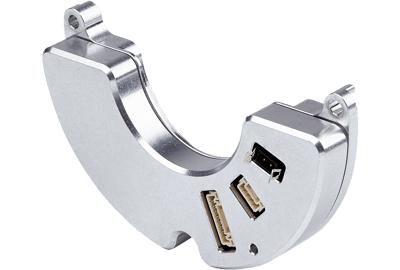

Motor Feedback Systems Rotary HIPERFACE DSL®, sHub®.png
Images are representations only.

sHub® Motor Feedback Systems Rotary HIPERFACE DSL®

Brand: Sick AG
Request Information
Favorite

With the sHub® sensor hub, servo motors can be used as a source of data for condition monitoring and predictive maintenance of the machine.

The data is collected in the motor and transmitted to the control using the HIPERFACE DSL®. Monitoring occurs in real time. It is therefore possible for the maintenance staff to react in a timely manner and intervene in machine processes, e.g. if servo motors are imbalanced. sHub provides additional sensor data such as vibration for intelligent servo drive systems, therefore increasing the efficiency and reliability of machines.

At a glance
  • Sensor hub with a maximum of 2 inputs for external sensors
  • The sensor data is integrated in to the motion control system via HIPERFACE DSL®
  • Collection of vibration, temperature, speed, position and service life histogram of the servo motor (combined with EDS/EDM35)
Features
  • You can implement Industry 4.0 requirements such as condition monitoring and predictive maintenance through the collection of additional sensor data in the servo motor
  • Increase the availability of your machine with reliable condition monitoring and targeted maintenance
  • You can minimize the time and money needed for development thanks to the existing HIPERFACE DSL® infrastructure in servo controllers
  • The synchronous detection of position and vibration data increases the forecast accuracy of when a component will fail
  • Additional cabling is not required

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 3
1106851
view description
  • Connection Type - Male Connector, 8-pin
  • Safety System - Yes
  • Type - EDM35-2VF0A024A
50+ In Stock
$1,261.00 CAD
Does not ship to OH, United States
1106846
view description
  • Connection Type - Male Connector, 8-pin
  • Safety System - No
  • Type - EDM35-0VF0A024A
50+ In Stock
$527.00 CAD
Does not ship to OH, United States
1107310
view description
  • Connection Type - Female Connector, 8-pin
  • Measuring Range - ± 50 g
  • Type - SHUB10-0ZA87010
25+ In Stock
$1,156.00 CAD
Does not ship to OH, United States

View Details

Specifications

Brand

Type

  • For Integration

Certifications & Approvals

  • CE

Model

  • Absolute Multiturn

Communication Interface

  • HIPERFACE DSL

Resolution Per Revolution

  • 24-bit

Mechanical Interface

  • Tapered Shaft

Connection Type

  • Female Connector, 8-Pin
  • Male Connector, 8-Pin

Available Memory Area

  • 8,192 Byte

Measuring Range

  • ± 50 g

Bandwidth

  • 10 kHz

Resolution

  • 13-bit

  • Servo motors: Early detection of ball bearing damage and imbalances due to vibration analysis (vibration analyses done by the drive manufacturer)
  • Condition monitoring of servo motors
  • Smart drive technology
