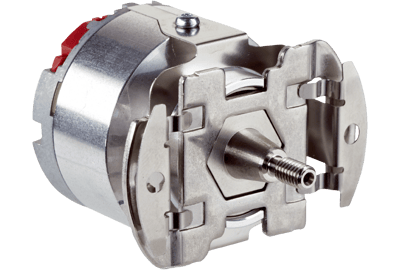

EKS/EKM36 Motor Feedback Systems Rotary HIPERFACE DSL®
Brand: Sick AGFrom a mechanical point of view, the EKS/EKM36 motor feedback system is based on the proven 36 mm design. This design is both compact and rugged, and has been proven many times over in a wide range of applications and surroundings.
In combination with an absolute location indicator system with a resolution of up to 20 Bits per revolution and a maximum of 4,096 revolutions, this design is unique in its class.
At a glance
- Motor feedback system with HIPERFACE DSL® interface
- Compact, rugged design with 36 mm diameter
- Up to 20 bit resolution per revolution and 4,096 revolutions measurable with the multiturn system
- Facility for connecting an external temperature sensor
- E²Prom with 8 KB of free memory space
- SIL2-certified (only applies to EKS/EKM36-2...)
- Service life histogram
- Saving all analog components on the controller part due to exclusively digital data transmission
- Enormous cost saving as the separate encoder cable is longer necessary, data transmitted synchronously to the controller cycle
- Minimal cabling thanks to integration of the encoder communication into the motor cable
- Optimization of the controller circuit via automated synchronization with the controller cycle
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 8
- Model - Absolute Singleturn
- Resolution Per Revolution - 18 bit
- Safety System - Yes
- Type - EKS36-2KF0B018A
100+ In Stock
$1,828.00 CAD
Does not ship to OH, United States
- Model - Absolute Singleturn
- Resolution Per Revolution - 20 bit
- Safety System - Yes
- Type - EKS36-2KF0B020A
50+ In Stock
$1,885.00 CAD
Does not ship to OH, United States
- Model - Absolute Singleturn
- Resolution Per Revolution - 18 bit
- Safety System - No
- Type - EKS36-0KF0B018A
50+ In Stock
$1,720.00 CAD
Does not ship to OH, United States
- Model - Absolute Multiturn
- Resolution Per Revolution - 20 bit
- Safety System - No
- Type - EKM36-0KF0B020A
50+ In Stock
$2,062.00 CAD
Does not ship to OH, United States
- Model - Absolute Multiturn
- Resolution Per Revolution - 18 bit
- Safety System - Yes
- Type - EKM36-2KF0B018A
50+ In Stock
$2,236.00 CAD
Does not ship to OH, United States
- Model - Absolute Multiturn
- Resolution Per Revolution - 18 bit
- Safety System - No
- Type - EKM36-0KF0B018A
25+ In Stock
$762.00 CAD
Does not ship to OH, United States
- Model - Absolute Singleturn
- Resolution Per Revolution - 20 bit
- Safety System - No
- Type - EKS36-0KF0B020A
25+ In Stock
$2,315.00 CAD
Does not ship to OH, United States
- Model - Absolute Multiturn
- Resolution Per Revolution - 20 bit
- Safety System - Yes
- Type - EKM36-2KF0B020A
13 In Stock
$1,643.00 CAD
Does not ship to OH, United States
Specifications
Brand
Certifications & Approvals
- CE
- SIL
Type
- For Integration
Model
- Absolute Singleturn
- Absolute Multiturn
Communication Interface
- HIPERFACE DSL
Resolution Per Revolution
- 20-bit
- 18-bit
Mechanical Interface
- Tapered Shaft
Connection Type
- Male Connector, 4-Pin
Available Memory Area
- 8,192 Byte
Documentation
Product Manuals
Brochure
- INSIDERS KNOW MORE Smart Motor Sensors pdf 875 KB
- EKS36/EKM36 Motor Feedback Systems Rotary HIPERFACE DSL® Release date: Mar 6 pdf 1.1 MB
- HIPERFACE DSL MASTER IP-Core pdf 2.6 MB
- Safe Motion Control Save Movement Monitoring pdf 2.3 MB
- The World of Motor Feedback Systems For Electrical Drive Engineering pdf 4.7 MB
