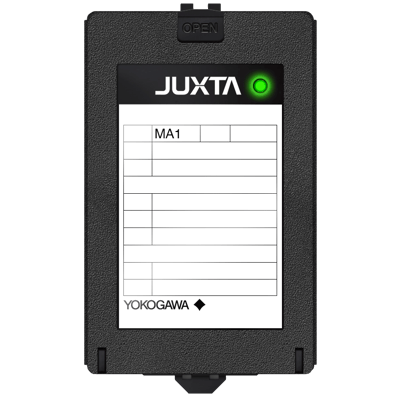

Images are representations only.
MA1 Distributor
Brand: Yokogawa Electric Corporation
The MA1 is a plug-in type distributor that is used in combination with a two-wire type transmitter to convert the transmitter's 4-20 mA DC signals into isolated DC current or DC voltage signals.
Features- Supports BARD-800
- Provided with Power Indicator Lamp
Specifications
Accuracy
- ± 0.1 % of Span
Consumption
- 2.6 W at 24 Vdc - Power Consumption
- 4.9 VA at 100 Vac - Power Consumption
- 6.9 VA at 200 Vac - Power Consumption
Current
- 1-24 mA for Span (DC) - Current Signal
- 25-35 mA - Transmitter Power Supply
Electrical Connectors
- M3.5 Screw Terminal
Enclosure, Body Material
- ABS Resin
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity Range
Input
- 40 mA DC - Max.
Input Signal
- 4-20 mA DC Signal from 2-Wire Typical Transmitter
Insulation Resistance
- 100 MΩ min. at 500 Vdc between Input, Output, Power Supply & Grounding Terminals Mutually
Mounting
- DIN Rail Mounting
- Side-by-Side Close Mounting
- Wall Mounting
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output Signal
- 0-100 mVdc
- 0-24 mA DC
- -10 to 10 Vdc
Power Supply
- 25.25 ± 0.25 Vdc - Transmitter Power Supply
Power Supply Effect
- Up to ± 0.1 % of Span for the Regulation of 85-264 Vac or 12-48 Vdc - Effects of Power Line Regulation
Resistance
- 2 to 250 kΩ min. - DC Voltage Allowable Load Resistance
- 250 ohms - Input Resistance
- 750 to 15,000 ohms, Max.
Response Time
- 150 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- -5 to 5 % - Zero Adjustment
- 95 to 105 % - Span Adjustment
Supply Voltage
- 10 mV-20 V for Span (DC) - Voltage Signal
- 12-48 Vdc
- 2,000 Vac for One Minute between Input, Output, Power Supply & Grounding Terminals Mutually - Withstanding Voltage
- 85-264 Vac, 47 to 63 Hz
Temperature Effect
- Up to ± 0.15 % of Span Per 10° C (18° F) - Effects of Ambient Temperature Variations
Zero Offset
- 0 to 200 % for Current Signal - Zero Elevation
- -125 to 200 % for Voltage Signal - Zero Elevation
