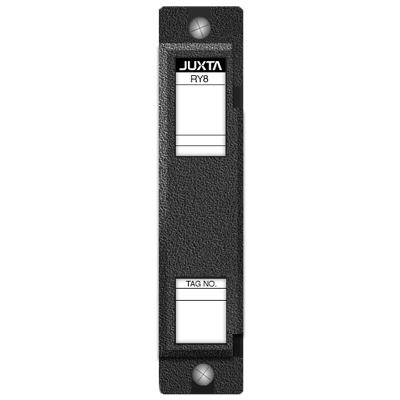

RY8 Relay Output Card

Brand: Yokogawa Electric Corporation

This nest storing type relay output card insulates DCS status output card and motor driving circuit and connects them through the relay.

This card receives contact signal from DCS and at switching time when OFF-ON of contact signal, motor start relay contact (output-1) should be set at ON for certain period of time.

And at switching time when ON-OFF of contact signal, motor stop relay contact (output-2) should be set at ON for certain period of time.

Since one card stores 2 channels, start-stop of 2 motors can be done by one card.
Features
  • Output contact points consist of 2 contacts: 1 for motor start and the other for motor stop
    • Output-1: Dry voltage contact point output for motor start (A contact and B contact points change-over through jumper)
    • Output-2: Dry voltage contact point output for motor start (transfer contact point)
  • Furnished with test switch convenient for debugging of DCS or operation checking and LED for status display
  • Provided with jumper to connect internally both commons of motor start-stop relay contacts to simplify wiring. When common use is not needed, commons can easily be separated through internal jumper pin

Models matching criteria: 4
  • Relay Output - Output-1: Output for Motor Start A Contact or B Contact Points (Dry Voltage Contact) Changeover by Jumper
  • Test Switch - No Test Switch
100+ In Stock
$1,088.00 CAD
Does not ship to OH, United States
  • Relay Output - Output-2: Output for Motor Stop Transfer Contact Points (Dry Voltage Contact Point)
  • Test Switch - With Test Switch
50+ In Stock
$2,271.00 CAD
Does not ship to OH, United States
  • Relay Output - Output-2: Output for Motor Stop Transfer Contact Points (Dry Voltage Contact Point)
  • Test Switch - No Test Switch
25+ In Stock
$1,516.00 CAD
Does not ship to OH, United States
  • Relay Output - Output-1: Output for Motor Start A Contact or B Contact Points (Dry Voltage Contact) Changeover by Jumper
  • Test Switch - With Test Switch
25+ In Stock
$234.00 CAD
Does not ship to OH, United States

Specifications

Dissipation

  • 60 mA at 24 Vdc - Current Dissipation

Electrical Connectors

  • M3.5 Screw Terminal - Output-1, Output-2

Electrical Rating

  • 0.1 A at 125 Vdc - Inductance Load
  • 0.2 A at 125 Vdc - Resistance Load
  • 1 mA at 5 Vdc - Min. Applicable Load
  • 1.5 A at 250 Vac - Inductance Load
  • 1.5 A at 30 Vdc - Inductance Load
  • 3 A at 250 Vac - Resistance Load
  • 3 A at 30 Vdc - Resistance Load

Humidity

  • 5 to 90 % Relative Humidity, Non-Condensing

Indication

  • LED - Light on (Orange) when Input is ON or Test Switch is ON

Input Signal

  • 24 Vdc, more than 30 mA

Insulation Resistance

  • 100 megaohms at 500 Vdc between (Input, Power Supply), CH1 Output-1, CH₂Output-1, CH1 Output-2, CH₂Output-2, Alarm Terminal

Mounting

  • Nest-Mounting

Operating Voltages

  • 125 Vdc - Max.
  • 250 Vac - Max.

Output Format

  • Relay Output

Screw Material

  • Nickel-Plated-Iron

Supply Voltage

  • 1,500 Vac/minute between (Input, Power Supply), CH1 Output-1, CH₂Output-1, CH1 Output-2, CH₂Output-2, Alarm Terminal - Withstand Voltage
  • 24 Vdc ± 10 % (Ripple Constant Below 5 % Peak-to-Peak)
  • 500 Vac/minute between CH1 Output-1, CH₂Output-1, CH1 Output-2, CH₂Output-2, (Input, Power Supply), Alarm Terminal - Withstand Voltage

Temperature Range

  • 0° to 50° C (32° to 122° F)

Torque

  • Below 6.94 In/Lbs - Fastening Torque

Update Time

  • 2 seconds - Output ON Time Width
