EFS/EFM50 Motor Feedback Systems Rotary HIPERFACE DSL®

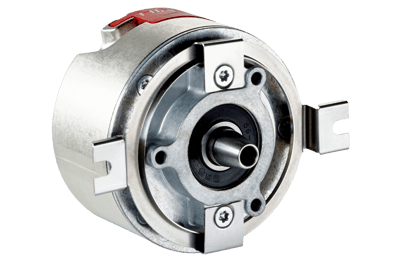

The EFS/EFM50 motor feedback system features a compact and rugged design with a diameter of 50 mm.

In combination with the absolute location indicator system of the motor feedback system, a resolution of up to 23 bits per revolution and a maximum of 4,096 revolutions, this design is unique in its class.

At a glance

Motor feedback system with HIPERFACE DSL^® interface
Compact, rugged design with 50 mm diameter
Up to 23-bit resolution per revolution and 4,096 revolutions measurable with the multiturn system
Facility for connecting an external temperature sensor
E²Prom with 8 KB of free memory space
SIL2-certified (only valid for EFS/EFM50-2)
12-bit resolution of the safe position value
Usage chart

Features

Thanks to data transmission exclusively in digital format, no analog components are necessary on the controller side
The absence of a separate encoder cable considerably reduces costs. Data transmission is synchronized with the controller cycle.
Minimum cabling thanks to integration of encoder communication into the motor cable
Optimization of the controller circuit via automated synchronization with the controller cycle
