SICK Ship Emission Measuring Device
Price
$57.00
CAD
Stock
50+ In Stock

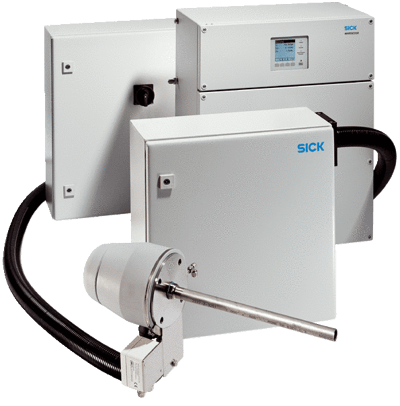

The MARSIC200 ship emissions measuring device from SICK is an innovative solution for reliably measuring emissions on ships according to MARPOL Annex VI and IMO MEPC.
The MARSIC200 is type-approved for this application by several classification organizations.
The MARSIC200 measures both SOx and CO2 upstream and downstream of the scrubbers, and NOx upstream and downstream of SCR (selective catalytic reduction) plants.
As a leading manufacturer of emissions measurement technology, SICK is offering the MARSIC200 as a modular housing concept.
Designed to be used on ships, the measuring device boasts extremely low maintenance costs and modules that are easy to replace.
Features- Up to 4 measurement points can be implemented with only one analyzer
- High levels of availability and reliability
- Modules that are easy to replace during servicing
- Low costs due to minimal maintenance requirements
- Servicing support is available globally
- Quick access to expert support with remote maintenance
- Equipped for existing and future requirements thanks to its rugged design and high level of measurement accuracy
Specifications
Brand
Environmental Protection
- IP54
Certifications & Approvals
- DNV GL
- CE
Indication
- LC Display
Mounting
- Wall Mounting
Gas Flow Rate
- 60 to 100 L/h
Response Time
- 15 to 30 s including sample gas path and gas sampling unit
Accuracy
- < 1 % of Measuring Range Full Scale
Process Temperature
- 10° to 550° C
Process Pressure
- -90 to 200 hPa Relative
Ambient Temperature
- 5° to 45° C
Storage Temperature
- -20° to 70° C
Ambient Humidity
- ≤ 90 % Non-Condensing
Power Supply
- 115 V /230 V, 50/60 Hz
Current Consumption
- At 230 Vac: ≤ 8 A
Power Consumption
- Gas sampling unit: ≤ 400 W
- Analyzer unit: ≤ 300 W
- Sample Gas line, Heated: ≤ 60 W/m
- Sample conditioning: ≤ 150 W
- Reliable emission monitoring on ships
- Accurate DeNOx and DeSOx measurements for ship engines
- Cost-efficient process monitoring upstream and downstream of the scrubber and catalytic converters
