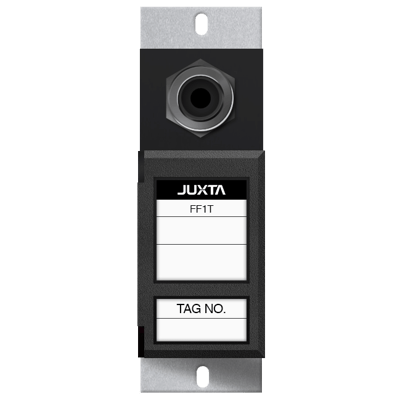

FF1T P/E Transducer

Brand: Yokogawa Electric Corporation

This 2-Wire type P/E Transducer converts 20-100 kPa, 0.2 to 1.0 kgf/cm2 or 3-15 psi Signal into 4-20 mA DC signal.
Features
  • Compact type by using Semi-Conductor Pressure Sensor
  • No positional error
  • Output current can be monitored by connecting ampere meter to CHECK terminal

Models matching criteria: 3
  • Input - psi: 3 to 15
  • Output - 4-20 mA DC
100+ In Stock
$1,292.00 CAD
Does not ship to OH, United States
  • Input - 0.2 - 1.0 kgf/cm²
  • Output - 4-20 mA DC
50+ In Stock
$1,888.00 CAD
Does not ship to OH, United States
  • Input - kPa: 20 to 100
  • Output - 4-20 mA DC
50+ In Stock
$2,507.00 CAD
Does not ship to OH, United States

Specifications

Accuracy

  • ± 0.2 % of Span
  • ± 0.5 % of Span when Multi-Close Mounting

BSP Connection

  • 1/8” BSPT Female

Electrical Connectors

  • M4 Screw Terminal

Enclosure, Body Material

  • ABS Plastic

Humidity

  • 5 to 90 % Relative Humidity, Non-Condensing

Input

  • psi: 28 (kPa: 200, bar: 2) - Permissible Input Pressure

Input Signal

  • 0.2 to 1.0 kgf/cm²
  • 3 to 15 psi
  • 20 to 100 kPa

Media

  • Dry, Non-Corrosive Air

Mounting

  • DIN Rail Mounting
  • Rack-Mounted
  • Wall Mounted

Output

  • 3.6-21.6 mA DC (-2.5 to 110 %)
  • 4-20 mA DC

Power Supply Effect

  • Less than ± 0.1 % of Span for Fluctuation of 12-42 Vdc

PT/PF/PS (JIS) Connection

  • 1/8” PT Female

Response Time

  • 100 milliseconds 63 % Response (10 to 90 %)

Sensor, Probe Connection

  • 2-Wire

Span & Zero Adjustments

  • ± 5 % of Span

Supply Voltage

  • 12-42 Vdc

Temperature Effect

  • Less than ± 0.4 % of Span for 10° C (18° F) Change

Temperature Range

  • 0° to 50° C (32° to 122° F)
