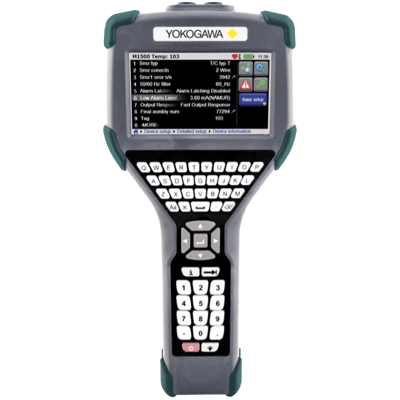

Yokogawa Fieldmate Handheld Communicator, YHC5150X
The YHC5150X FieldMate Handheld Communicator is the latest Intrinsically Safe HART® communicator from Yokogawa Corporation of America.

All HART® field devices can be configured, polled, and trimmed utilizing a Windows-Embedded CE™ based system for faster processing and greater storage capacity.

In addition, all options are standard, and no subscription is required. The YHC5150X is a full function, DD Direct, HART® Communicator supporting Universal, Common Practice and Device Specific commands for commissioning, configuration, and maintenance operations.
Features
  • Reads manufacturers’ DDs in their native format without the need for translations
  • HART® -compliant modem communicates with any registered or unregistered HART® Device, including HART® 6 and 7
  • Has an ergonomic, handheld design
  • Enhanced 4.3” diagonal anti-glare touchscreen with color graphic display (no stylus required)
  • Full QWERTY keyboard for commissioning new transmitters
  • On Demand Help Menus and teachable device-specific short cuts
  • More than twice the battery capacity of any handheld communicator
  • Manage device information
  • Integrated multi-language support

Specifications

Brand

Adjustment

  • 52 Keys Including Qwerty Keys

Approvals & Certifications

  • ATEX II 1 G Ex ia IIC T4 Ga
  • cULus Class I, Div. 1, Grade A, B, C, D, T4
  • IEC Ex ia IIC T4 Ga

Battery Life

  • 10 Hours - Continuous Use
  • 100 Hours - Standby/Hibernate
  • 20 Hours - Typical Use

Communication

  • HART: Two 4 mm Banana Plugs
  • USB: Supporting up to 115 Kbps

Display

  • 1/4” VGA (480 x 272 Pixels) Color
  • 4.3” (109 mm) Transflective Display with Anti-Glare Touch Screen

Environmental Protection

  • IP51

Humidity

  • 0 % to 95 % Relative Humidity, Non-Condensing - for 0° to 50° C (32° to 122° F)

Input

  • 100-240 Vac, 50/60 Hz

Power Supply

  • Rechargeable Lithium-Ion Power Module - Battery

Resistance

  • 250 ohms - Resistor

Shock

  • Tested to Survive a 1 Meter Drop Onto Concrete

Storage Temperature

  • -20° to 55° C (-4° to 131° F) - with Batteries
  • -20° to 60° C (-4° to 140° F) - without Batteries

Temperature Range

  • 10° to 40° C (50° to 104° F) - Charge
  • -10° to 50° C (14° to 122° F) - Usage
