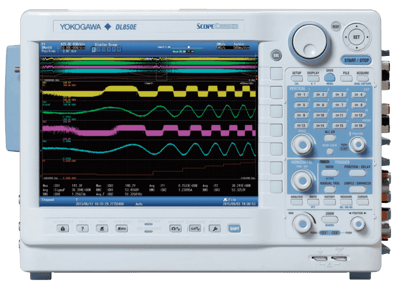

DL850E/DL850EV ScopeCorder
Brand: Yokogawa Electric Corporation
The most feature-rich ScopeCorder, the DL850E combines a mixed signal oscilloscope and portable data acquisition recorder into a modular platform designed to capture both high-speed transients and low speed trends.
Combining signal conditioning, signal processing, and large recording memory, the DL850E is ready to be configured to meet your application demands.
With its menu-driven user interface, advanced features are easily accessible, so you can gain insights and solve problems faster.
FeaturesMost processing options
- 29 waveform parameter measurements
- Optional real-time math
- Optional power math
Highest channel count
- 8 input module slots
- Up to 128 channels
- Up to 100 MS/s sampling rate
- Up to 16-bit analog resolution
Deepest memory
- Up to 2 gigapoints waveform memory
- Optional internal HDD
- Optional external eSATA port for external drives
- Maximum 200 days recording time
Specifications
Accuracy
- ± 0.3 % DC: Model 720220
- ± 0.005 % - Time Axis Accuracy
- ± 0.08 % DC: Model 701265
- ± 0.1 % (Frequency) DC: Model 701281
- ± 0.15 % DC: Model 720221
- ± 0.25 % (Voltage) DC: Models 701261, 701262
- ± 0.25 % (Voltage), ± 0.5 % (Acceleration) DC: Model 701275
- ± 0.25 % DC: Models 701251, 720254, 701267
- ± 0.5 % (Strain) DC: Models 701270, 701271
- ± 0.5 % DC: Models 720211, 701250, 701255
- ± 200 Nanoseconds (When GPS Signal is Locked)
Ambient Temperature Range
- 23° ± 5° C (73.4° ± 9° F)
Approvals & Certifications
- AS
- BS
- CSA
- IEEE
- NBR
- UL
- VDE
Bandwidth
- 100 Hz - Model 701265
- 20 MHz - Models 720211, 701270, 701271
- 3 MHz - Models 701250, 701255
- 300 kHz - Models 701251, 720254
- 40 kHz - Models 701267, 701275
- 40 kHz (Voltage), 100 Hz (Temperature): Models: 701261, 701262
- 5 kHz - Model 720220
- 600 Hz - Model 720221
Channels
- 120-Channels/Slot, 336-Channels/Unit - DL850EV (Number of Input Channels)
- 16 - Models 720220, 720221
- 16-Channels / Slot, 128-Channels / Unit - DL850E (Number of Input Channels)
- 2 - Models 720211, 701250, 701251, 701255, 701267, 701261, 701262, 701265, 701270, 701271, 701275, 701281
- 336
- 4 - Model 720254
Circuit Protection
- Overcurrent Detection: Breaker (15 A) - 12 Vdc Power (/ DC Option, for DL850EV Only)
Communication
- CAN Bus
- Ethernet TCP/IP
- FTP
- GPIB
- GPS
- IRIG
- LIN
- SENT
- SMTP - Mail Transmission Function
- USB
Consumption
- 200 VA - Max.
- Approximately 150 VA, Max.
CPU Type
- Intel Core 2 Duo (2 GHz) or Higher
Delay Time
- 100 Nanoseconds to 10 milliseconds
Display
- 10.4-Inch TFT Color LCD Monitor
- 1001 x 656 - Wide Waveform Display
- 801 x 656 - Normal Waveform Display
- Bar Graph - Display Format
- Quasi XGA (102 x 4,768 Dot), Approximately 60 Hz Vertical Synchronization - Video Signal Output
- TY Display for 1, 2, 3, 4, 5, 6, 8, 12, 16 Division Display
- Vector - Display Format
- XGA (1,024 x 768)
- X-Y (Selectable x Axis / Y Axis in CHn, mATHn, Max.
Electrical Connectors
- BNC Connector
- D-Sub 15-Pin Receptacle - Video Signal Output
- Plug-In Connector
- RJ-11 Connector
- RJ45 Port
- SMA Connector
- USB - Typical A, Typical B
Frequency
- 1 kHz - Max.
- 50/60 Hz
Function
- Acquisition Mode
- Data Filing on a PC
- Display Hard Copy
- Dual Capture
- High-Resolution Printing on a A4-Size Long Paper
- Main Unit Time Synchronization
- Monitoring
- Numeric Key
- Power Math
- Protect Key
- Real Time Math
- Recording Start/Stop
- Roll Mode
- Sample Block Synchronization
- Setup Control
- Sure Delete
- User-Defined Math
Humidity
- 20 to 80 % Relative Humidity - Ambient
Input
- ± 8 V, Max.
- 0 to 1,000 V to Direct Input
- 1,000 V - with the Combination of the 720211 High-Speed Isolation Module & a 700929, 702902 or 701947 Probe
- 10 V (CAN Port): Models 701270, 701271, 720240, 720241
- 140 V - Direct Input for Model 701251
- 18 V (LIN Port): Model 720241
- 200 V - Direct Input for Models 720211, 701250, 720254, 701255
- 42 V - Direct Input (720220,701281), for Models 701261, 701262, 701265, 720221, 720221, 720243
- 420 V - in Combination with 700929, 702902 or 701947 Probe for Model 701281
- 600 V: Models 701250, 701251, 720254, in Combination with 10: 1 Probe Model 701940 (701255)
- 850 V - in Combination with 758933 & 701954 for Model 701267
Input Impedance
- 5 kiloohms
- 50 ohms
Insulation Resistance
- 10 megaohms or Higher at 500 Vdc between Power Supply & Earth, DC Power Terminal & Ground - 12 Vdc Power (/DC Option, for DL850EV Only)
Operating Temperature
- 5° to 40° C (41° to 104° F)
Output
- ± 12 V - Probe Power Output
- 1 kHz ± 1 %, 1 V Peak-to-Peak ± 10 % - COMP Output (Probe Compensation Signal Output Terminal)
- 5 V CMOS Level
Output Format
- Analog RGB Output - Video Signal
Power Supply
- 5 V, 500 mA (In Each Port)
Power Supply Effect
- ± 1 % - Errors in Power Supply Voltage/Frequency
Range
- ± 80 ppm - Clock Synchronization Range
Resolution
- 12-bit: Models 720211, 701250, 701255
- 16-bit (Voltage), 0.1° C (0.18° F) (Temperature): Model 701261, 701262, 701265
- 16-bit: Models 701251, 720254, 701267, 720220, 720221, 701270, 701271, 701281
- 8 Dot/mm - Feeding Direction Resolution
Response Time
- < 5 minutes
Sample Rate
- 1 MS/s: Models 701251, 720254, 701281
- 10 MS/s: Models 701250, 701255, 720230
- 10 S/s: Model 720221
- 100 KS/s (Voltage), 500 S/s (Temperature): Models 701261,701262
- 100 KS/s: Models 701267, 701270, 701271, 701275, 720240, 720241, 720243
- 100 MS/s: Model 720211
- 200 KS/s: Model 720220
- 500 S/s (Voltage), 500 S/s (Temperature): Model 701265
Supply Voltage
- 1,500 Vac between Power Supply & Earth for One Minute - Withstand Voltage
- 100-120 Vac - Rated Power Supply Voltage
- 10-18 Vdc - Allowable Supply Voltage for 12 Vdc Power (/DC Option, for DL850EV Only)
- 12 Vdc - Rated Supply Voltage for 12 Vdc Power (/DC Option, for DL850EV Only)
- 220-240 Vac - Rated Power Supply Voltage
- 30 Vac between DC Power Terminal & Ground for One Minute - Withstand Voltage for 12 Vdc Power (/DC Option, for DL850EV Only)
System Requirements
- Windows® 7 SP1 (32-bits/64-bits)
- Windows® 8 (32-bits/64-bits)
- Windows® 8.1 (32-bit/64-bit)
Update Time
- 30 minutes or more after Calibration - Warm-Up
Version / Leadwires
- 2-Wire - Single-Phase
- 3-Wire - Single-Phase, Three-Phase
- 4-Wire - Three-Phase
