Yokogawa High/Low Signal Selector, VJSS
Images are representations only.

VJSS High/Low Signal Selector

Brand: Yokogawa Electric Corporation
Request Information
Favorite

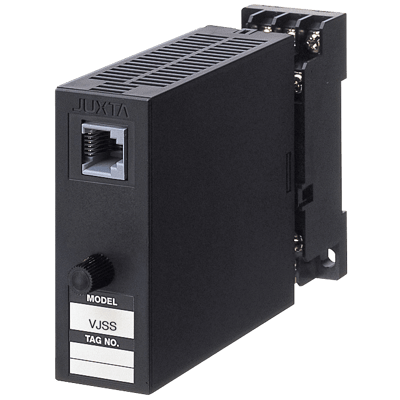

The VJSS is a compact, plug-in high/low signal selector that selects the higher or lower of two DC input signals and converts it into an isolated DC voltage or DC current signals.
Features
  • A Wide Choice of Output Signal Range
  • Four Isolated Ports (Input, Output-1, Output-2, Power Supply and Grounding) on a Dual-Output Model
  • A Withstanding Voltage of 2,000 Vac
  • A Wide Supply Voltage Range - Supporting Both 100 V and 200 V Power Lines of AC or DC
  • Various Parameters Such as Input Range Can Be Set and Modified Using a PC (VJ77) or Handy Terminal (JHT200)
  • Close Side-By-Side Mounting

View Details

Specifications

Brand

Accuracy

  • ± 0.1 % of Span

Approvals & Certifications

  • CE
  • EMC - EN 61326

Current

  • 1-24 mA DC - Span

Dissipation

  • 2.2 W at 10 Vdc
  • 2.3 W at 24 Vdc
  • 4.6 VA at 100 Vac
  • 6.4 VA at 200 Vac

Enclosure, Body Material

  • ABS Resin

Humidity

  • 5 to 90 % Relative Humidity Non-Condensing

Insulation Resistance

  • 100 megaohms Min. at 500 Vdc

Load

  • 2,000 to 250,000 ohms - Min. Load Resistance
  • 750 to 15,000 ohms - Max.

Mounting

  • DIN Rail
  • Terminals with M3 Screws
  • Wall Mounted

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Output

  • 0 to 100 mVdc
  • 0-20 mA DC
  • 0 to 24 mA DC to Current Signal
  • -10-10 Vdc - Voltage Signal

Power Supply Effect

  • ± 0.1 % of Span - Effects of Power Line Regulation

Resistance

  • 250 ohms for 4-20 mA Dc - Input Resistance
  • Approximately 1 Megaohm for 1-5 Vdc or 800 kiloohms when Turned Off - Input Resistance

Response Time

  • 150 milliseconds for 63 % Response

Sensitivity

  • 0.5 % of Span - Selection Sensitivity

Span & Zero Adjustments

  • ± 1 % of Span - Input Adjustment
  • ± 5 % of Span - Output Adjustment

Supply Voltage

  • 1,000 Vac/minute - Withstanding Voltage between Output-1 & Output-2 Terminals
  • 10 mV-20 Vdc - Span
  • 100-240 Vac/dc (-15 %, 10 %), 50/60 Hz
  • 12-36 Vdc
  • 15-30 Vdc (± 20 %)
  • 2,000 Vac/minute - Withstanding Voltage between Input, (Output-1, Output-2)
  • 85-264 Vac, 47 to 63 Hz
  • 85-264 Vdc

Temperature Effect

  • Up to ± 0.2 % of Span Per 10° C (18° F) - Effects of Ambient Temperature

Zero Offset

  • 0 to 200 % - Current Signal
  • -100 to 200 % - Voltage Signal
