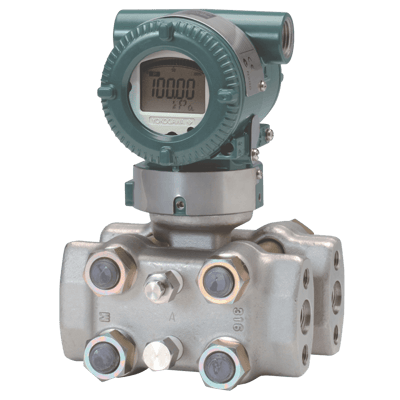

Accuracy
- ± (0.005 + 0.0035 URL/Span) % of Span (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy (X > Span) for Capsule M (For Differential Pressure)
- ± (0.005 + 0.0049 URL/Span) % of Span (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy (X > Span) for Capsule H (For Differential Pressure)
- ± 0.04 % of Span (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy (X ≤ Span) for Capsule H & M (For Differential Pressure)
- ± 0.1 % of Span (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy for Capsule M & H (For Static Pressure)
- ± 0.5° C (± 0.9° F) (Includes Terminal-based Linearity, Hysteresis & Repeatability) - for Capsule M & H (For External Temperature)
- ± 1 % of Mass Flow Rate over 10:1 Flow Range - Mass Flow Reference Accuracy
- 1 % of Total Mass Flow - Totalized Mass Flow Reference Accuracy
Alarm
- Down-Scale: -2.5 %, 3.6 mA DC or Less
- Up-Scale: 110 %, 21.6 mA DC or more
Ambient Temperature Range
- -30° to 80° C (-22° to 176° F) with LCD Display
- -40° to 85° C (-40° to 185° F)
Approvals & Certifications
- Leak Test
- Material Certificate
- Pressure Test
- SIL Certification - SIL 2 Capability for Single Transmitter Use, SIL 3 Capability for Dual Transmitter Use, IEC 61508: 2000
- TÜV (Technischer Uberwachungsverein)
Approvals & Certifications
- ATEX Flameproof, Intrinsically Safe
- CE
- CSA Explosion-proof, Intrinsically Safe
- EMC EN 61326-1 Class A, EN 61326-2-3, EN 61326-2-5 (For Fieldbus)
- FM Explosion-proof, Intrinsically Safe & Non-Incendive
- IEC Ex Flameproof
- NAMUR NE43
- PED 2014/68/EU, 97/23/EC
- UL
Burst Pressure
- psi: 19,100 (MPa: 132, bar: 1,320)
Cable Material
- Heat-Resistant FEP Cable with a Shield
- Nickel-Plated Brass - Cable Gland
Communication
- 2-Wire Half-Duplex RS-485 Modbus Communication Protocol
- Baud Rate: 1,200, 4,800, 9,600, 19,200 bit/sec
- FOUNDATION Fieldbus
- HART
- Modbus
Current
- 10 mA Typical - Quiescent Supply Current (For Modbus)
- Software Download State 24 mA - Max.
- Steady State 15 mA - Max.
Damping Adjustment
- 0 to 100 seconds - Damping Time Constant
Diagnostics
- Configuration Error - Self Diagnostics
- CPU Failure - Self Diagnostics
- Hardware Failure - Self Diagnostics
- Heat Trace Monitoring - Advanced Diagnostics
- Impulse Line Blockage Detection - Advanced Diagnostics
- Process Alarm for Differential Pressure, Static Pressure & External Temperature - Self Diagnostics
Diameter
- 0.168” (4.3 mm) - Outside Diameter for Heat-Resistant FEP Cable with a Shield
- 0.335” (8.5 mm) - Outside Diameter for Oil-Proof & a Heat-Resistant Cable with a Shield
Differential Pressure
- psi: -14.5 to 14.5 (kPa: -100 to 100, Mbar: -1,000 to 1,000) - for Capsule M
- psi: -72.52 to 72.52 (kPa: -500 to 500, Mbar: -5,000 to 5,000) - for Capsule H
Display
- 5-Digit (Flow, Differential Pressure, Static Pressure & External Temperature)
- 6-Digit Numerical Display (Total Flow)
- 6-Digit Unit Display
- Bar Graph
- LCD Display
Drain, Vent Valves & Plug
Duty Cycle
- Approximately 50 % (1: 2 to 2: 1)
Electrical Connectors
- 1/2” NPT Female
- Blind Plug
- G 1/2” Female
- M20 Female
Enclosure Finish
- Anti-Corrosion Coating
- Mint Green Paint (Munsell 5.6BG 3.3/2.9 or its Equivalent)
- Polyurethane Paint
Enclosure, Body Material
- ASTM CF-8M Stainless Steel
- Low Copper Cast Aluminum Alloy
Execution Time
- 30 milliseconds - for AI, SC, IT, IS & AR Function Block
- 45 milliseconds - for PID Function Block
Fill Material
- Fluorinated Oil
- Silicone Oil
Flange Material
- F316 Stainless Steel - Cover Flange
Gasket Material
- Fluorinated Rubber - Process Connector Gasket
- PTFE Teflon - Process Connector Gasket
- Teflon-Coated 316L Stainless Steel - Capsule Gasket
Humidity
- 0 to 100 % Relative Humidity - Ambient Humidity
Length
- 1.33” (34 mm) Standard
- 4.6” (119 mm) - Total Length (Long Vent)
Load
- 0 to 1,335 ohms - for Operation (HART Protocol Typical)
- 250 to 600 ohms for Digital Communication (HART Protocol Typical)
Materials of Construction
- 304 Stainless Steel - Mounting Bracket
- 316 Stainless Steel - Name Plate & Tag, Mounting Bracket
Mounting
- 2” (50.8 mm) Pipe Mounting Bracket
Mounting Position Effect
- Tilting up to 90° will cause Zero Shift up to 0.4 kPa
NACE & NIST
- NACE MR-0103
- NACE MR-0175, ISO 15156
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
Nut & Bolt Material
- 316L Stainless Steel
- 660 Stainless Steel
- B7 Carbon Steel
O-Ring Material
- Buna-N - Cover O-Ring
- Fluorinated Rubber - Cover O-Ring
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Output
- 0-2 Vdc - Low Level Pulse Output
- 10.5-30 Vdc at 120 mA DC, Max.
- 3.8-21.6 mA - Analog Output
- 4-20 mA DC (2-Wire) - Analog Output
Overpressure Effect
- ± 0.03 % of URL - for M & H Capsules
Power Supply Effect
- ± 0.005 % Per Volt (21.6-32 Vdc, 350 ohms)
Pressure Type
- Absolute
- Differential
- Gauge
Process Connection Material
Process Temperature
- -40° to 120° C (-40° to 248° F)
Response Time
- 200 milliseconds - HART & Modbus for Capsule M & H (Static Pressure Signal)
- 250 milliseconds - HART & Modbus for Capsule M & H (Differential Pressure Signal)
- 300 milliseconds - Fieldbus for Capsule M & H (Static Pressure Signal)
- 350 milliseconds - Fieldbus for Capsule M & H (Differential Pressure Signal)
Stability
- ± 0.1 % of URL Per 10-Years - for M & H Capsules (For Differential Pressure)
Static Pressure
- psi: -14.5 to 4,500 (MPa: -0.1 to 32, bar: -1 to 320) - Gauge Pressure (Sealed Gauge) for Capsule M & H
- psia: 0 to 4,500 (MPa: 0 to 32, bar: 0 to 320) - Absolute Pressure for Capsule M & H
Static Pressure Effect
- ± 0.02 % of URL Per psi: 1,000 (MPa: 6.9, bar: 69) - Effect on Zero for Capsule M (For Differential Pressure)
- ± 0.028 % of URL Per psi: 1,000 (MPa: 6.9, bar: 69) - Effect on Zero for Capsule H (For Differential Pressure)
- ± 0.075 % of Span Per psi: 1,000 (MPa: 6.9, bar: 69) - Span Effect for M & H Capsules (For Differential Pressure)
Supply Pressure - Maximum
- psi: 4,500 (MPa: 32, bar: 320) - for Capsule M & H
Supply Voltage
- 10.5-30 Vdc - Intrinsically Safe, Typical N or Non-Incendive (For HART)
- 10.5-32 Vdc - Lightning Protector (For HART)
- 10.5-42 Vdc - General Use & Flameproof Typical (For HART)
- 16.6 Vdc - Min. Voltage for HART Communication
- 24 Vdc, up to 570 ohms Load
- 300 V - RTD Cable Voltage Rating
- 9-30 Vdc, 250 mW - General Use & Flameproof Typical for Modbus
- 9-32 Vdc - General Use, Flameproof Typical, Typical N or Non-Incendive for FOUNDATION Fieldbus
Temperature Effect
- ± (0.07 % of Span + 0.009 % of URL) Per 28° C (50° F) - Ambient Temperature Effect for Capsule M (For Differential Pressure)
- ± (0.07 % of Span + 0.0125 % of URL) Per 28° C (50° F) - Ambient Temperature Effect for Capsule H (For Differential Pressure)
- ± 0.14 % of Span ± 0.018 % of URL Per 28° C (50° F) - Ambient Temperature Effect for Capsule M & H (For Static Pressure)
- ± 0.5° C (± 0.9° F) Per 28° C (50° F) - Ambient Temperature Effect for Capsule M & H (For External Temperature)
Temperature Range
- 10° to 1,050° C (18° to 1,890° F) - Span for Capsule M, H & L (External Temperature)
- -200° to 850° C (-328° to 1,562° F) - Range for Capsule M, H & L (External Temperature)
- -273° to 1,927° C (-459° to 3,500° F) - Fixed Temperature for Capsule M, H & L (External Temperature)
- -40° to 105° C (-40° to 221° F) - Cable for RTD (External Temperature)
- -80° to 200° C (-112° to 392° F) - Cable for RTD (External Temperature)
Update Time
- 1,000 milliseconds - HART for Total Flow Signal
- 100 milliseconds - HART, Modbus for Flow Rate, Differential & Static Pressure Signal
- 200 milliseconds - Fieldbus for Flow Rate, Differential & Static Pressure Signal
- 400 milliseconds - HART, Modbus for External Temperature Signal
- 800 milliseconds - Fieldbus for External Temperature Signal
Vibration Effect
- ± 0.1 % of URL - Differential & Static Pressure
- ± 0.5° C (± 0.9° F) - External Temperature
Wetted Materials
- 316L Stainless Steel - Others
- F316L Stainless Steel - Others
Zero Offset
- External Zero for DP is Continuously Adjustable with 0.01 % Incremental Resolution of Span
