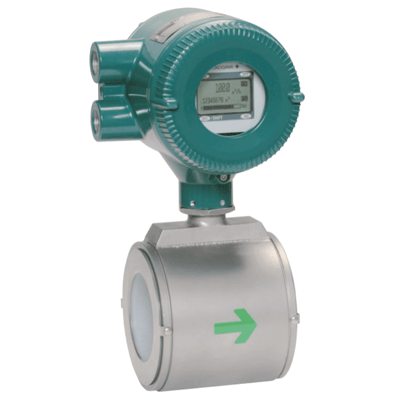

Yokogawa Magnetic Flow Meter, ADMAG AXR
The ADMAG AXR two-wire loop-powered magnetic flow meter can be installed in a two-wire system.

The maximum power consumption of the AXR is 0.3W, 40 times less power draw than a traditional magnetic flow meter, resulting in CAPEX and OPEX savings.

The ADMAG AXR is the world's first two-wire magnetic flow meter which employs the fluid noise-free "Dual Frequency Excitation Method," a Yokogawa innovation, achieving excellent stability for instrumentation.
Features
  • 2-wire Power Loop
  • An extra AC power supply is not necessary. 2-wire loop powered performance allows direct connection to DCS I/O card possible, allowing for real cost reductions.
  • Reduced CAPEX and OPEX on site.
  • Power consumption reduced by 40% compared to a typical 4-wire magnetic flowmeter.
  • Annual CO2 emissions can be reduced from approximately 60 kg to 1.2 kg (compared to a standard 4-wire magnetic flowmeter).
  • Dual Frequency Performance
  • Yokogawa’s unique and advanced excitation method, "Dual Frequency Excitation," achieves stable measurement, zero stability and quick response times. The exclusive technology for stable and reliable measurement on your site.
  • Noise Reduction Technology
  • Flow noise reduction is further achieved by incorporating smooth mirror finished PFA liners and special surface finished electrodes. This is further enhanced with aligned super high density coils that generate a stronger magnetic field.
  • SIL2 Certified
  • Yokogawa believes safety should not be an option; it should be standard in all modern products. AXR is the first 2-wire magmeter of SIL2 Safety Integrity Level (IEC 61508) certified. AXR is capable of SIL2 single use and SIL3 redundant use, as standard.
  • Parameter Operation
  • AXR has magnet switches for parameter setting. Users can access the functions without removing the case cover in hazardous, humid, and dusty environments.
  • Adhesion Diagnostic Level Function
  • The electrode is one of the most important parts of a magnetic flow meter. Only ADMAG flow meters have "Adhesion Diagnostic Level Function". It diagnoses the condition of electrode surface and indicates the adhesion/coating in 4 levels. Users can change the detection level (threshold) depending on each individual process condition. This allows for predictive maintenance and reduced operating costs.
  • Alarm Indication
  • ADMAG AXR employs a full-dot matrix LCD indicator. It can display up to 3 lines as required by the user and is available in multiple languages. If an alarm is triggered, a clear message is displayed along with a solution.
  • High Accuracy
  • The ADMAG AXR performs 0.5% of rate under normal flow rate conditions.

Specifications

Brand

Accuracy

  • 0.5 % of Rate

Alarm

  • 20.5 mA - Process Alarm, Setting Alarm
  • 21.6 mA or more - System Alarm, Process Alarm, Setting Alarm
  • 3.2 mA or Less - System Alarm, Process Alarm, Setting Alarm
  • 3.8 mA - Process Alarm, Setting Alarm
  • 4 mA - Process Alarm, Setting Alarm
  • Down-Scale: -5 %, 3.2 mA DC or Less - Burn-Out
  • Up-Scale: 110 %, 21.6 mA DC or more (Standard) - Burn-Out

Ambient Temperature Range

  • 20° ± 5° C (9° F)
  • -40° to 55° C (-40° to 131° F) - General-purpose Use

Approvals & Certifications

  • ATEX EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-11, EN 60079-31, DEKRA 11-ATEX-0144
  • CE
  • CSA C22.2 No.0, C22.2 No.0.4, C22.2 No.0.5, C22.2 No.25, C22.2 No.30, C22.2 No.94, C22.2 No.157, C22.2 No.61010-1, Class I, Groups A, B, C, D, Class II, Groups E, F, G, Class III
  • EMC EN 61326-1 Class A, EN 61326-2-3
  • FM FM3600, FM3610, FM3615, FM3810, ANSI/NEMA 250, Explosion-proof for Class I, Div. 1, Groups A, B, C, D, Dust-Ignition-proof for Class II/III, Div. 1, Groups E, F, G
  • IECEx IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-11, IEC 60079-31, Ex d E Ia IIC T6 to T4 Gb
  • TIIS Ex d E [ia] IIC T4

Approvals & Certifications

  • Calibration
  • Hydrostatic Pressure Test
  • Material Certificate
  • SIL 2 Capability for Single Flowmeter Use, SIL 3 Capability for Dual Flowmeter Use, IEC 61508: 2000, Part 1 to Part 7
  • TÜV (Technischer Uberwachungsverein)

BSP Connection

  • G 1/2” Female

Cable Length

  • 6,562 feet (2,000 metres)

Cable Material

  • Polyvinyl Chloride Insulated & Sheathed Portable

Communication

  • BRAIN
  • HART

Cover Material

  • Aluminum Alloy

Current

  • 25 mA or Less for 1 Minute at 500 Vac between Power Supply/Digital Output & Functional Grounding
  • 3.2 mA (-5 %) or Less - Current Output
  • 6 mA or Less for 1 Minute at 100 Vac between Power Supply / Digital Output & Functional Grounding

Diagnostics

  • Process, System, Setting Alarm & Warnings (Self Diagnosis)

Diameter

  • With No Glands: 0.26” to 0.47” (6.5 to 12 mm)
  • With Plastic Glands: 0.24” to 0.47” (6 to 12 mm)
  • With Waterproof Glands & Waterproof Glands with Union Joints: 0.41” to 0.45” (10.5 to 11.5 mm)

Display

  • Full Dot-Matrix LCD (128 x 64 Pixels)

Distance

  • 0.8 Kilometers - Analog I/O Module (For Prosafe-RS)
  • 1.4 Kilometers for Analog I/O Module (For Prosafe-RS)
  • 6” (15 cm) or more - Distance from Other Power Line
  • Up to 2 Kilometers when A CEV Cable is used - Communication Distance (JUXTA, Distributor, I/O Module, Signal Conditioner Card)

Duty Cycle

  • 50%

Electrical Connectors

  • ANSI 1/2” NPT Female
  • ISO M20 x 1.5 Female
  • JIS G 1/2” Female
  • M4 Screw Terminal

Electrical Protection

  • Lightning Protection

Electrical Rating

  • 120 mA DC at 30 Vdc

Enclosure Finish

  • Corrosion-Resistant Coating
  • Epoxy Resin Coating
  • High Anti-Corrosion Coating
  • Mint Green Paint (Munsell 5.6 BG 3.3/2.9 or its Equivalent) - Coating Color
  • Polyurethane Coating

Enclosure, Body Material

  • 304 Stainless Steel
  • Aluminum Alloy - Converter Material
  • Carbon Steel-JIS SPCC Equivalent

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Excitation Voltage

  • 29 V, Max.

Flange Material

  • 304 Stainless Steel
  • Carbon Steel (JIS SS400 or SFVC 2A) - Flange & Mini-Flange Material
  • JIS SUS430 ASTM 4300 / DIN X6Cr17 / EN 1.4016 Equivalent - Mini Flange
  • Stainless Steel-SCS13 - Mini Flange, Pipe

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ANSI
  • 1-1/2” (DN 40) - 300# ANSI
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - JIS 20K
  • 1-1/2” (DN 40) - PN 10
  • 1-1/2” (DN 40) - PN 16
  • 1-1/2” (DN 40) - PN 40

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ANSI
  • 1” (DN 25) - 300# ANSI
  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - JIS 20K
  • 1” (DN 25) - PN 10
  • 1” (DN 25) - PN 16
  • 1” (DN 25) - PN 40

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150# ANSI
  • 2-1/2” (DN 65) - 300# ANSI
  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 20K
  • 2-1/2” (DN 65) - PN 10
  • 2-1/2” (DN 65) - PN 16
  • 2-1/2” (DN 65) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 300# ANSI
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 20K
  • 2” (DN 50) - PN 10
  • 2” (DN 50) - PN 16
  • 2” (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ANSI
  • 3” (DN 80) - 300# ANSI
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 20K
  • 3” (DN 80) - PN 10
  • 3” (DN 80) - PN 16
  • 3” (DN 80) - PN 40

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI
  • 4” (DN 100) - 300# ANSI
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 20K
  • 4” (DN 100) - PN 10
  • 4” (DN 100) - PN 16
  • 4” (DN 100) - PN 40

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI
  • 6” (DN 150) - 300# ANSI
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 20K
  • 6” (DN 150) - PN 10
  • 6” (DN 150) - PN 16
  • 6” (DN 150) - PN 40

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ANSI
  • 8” (DN 200) - 300# ANSI
  • 8” (DN 200) - JIS 10K
  • 8” (DN 200) - JIS 20K
  • 8” (DN 200) - PN 10
  • 8” (DN 200) - PN 16
  • 8” (DN 200) - PN 40

Flow Rate

  • 0 to 18,850 LPM (0 to 4,979 gpm) - Max.
  • 0 to 565.5 LPM (0 to 149.4 gpm) - Min. Span Flow Rate (1 feet/sec)

Fluid

  • Gas
  • Liquid

Gasket Material

  • Chloroprene Rubber
  • Fluororubber (Acid Resistant & Alkali Resistant) for PVC Pipes (Viton)
  • PTFE-Sheathed Non-Asbestos

Humidity

  • 0 to 100 % - Ambient Humidity

Input Impedance

  • 10 kiloohms or more at 2.4 kHz - Communicating Device

Insulation Resistance

  • 100 megaohms or more at 50 Vdc between Power Supply / Digital Output & Functional Grounding
  • 20 megaohms or more at 100 Vdc between Power Supply/Digital Output & Functional Grounding

Load

  • 0.22 µF or Less - Load Capacitance
  • 3.3 MH - Load Inductance

Maximum Current

  • 17 mA - Intrinsically Safety Circuit
  • 600 A (8/20 μs) - Allowable Current

Maximum Voltage

  • 14 V - Intrinsically Safety Circuit

Mounting

  • M4 Screw

Mounting Position

  • Vertical

NPT Connection

  • 1/2” NPT Female

Nut & Bolt Material

  • Carbon Steel

Operating Temperature

  • -20° to 55° C (-4° to 131° F) - Indicator Operating Range

Output

  • 0-2 Vdc - Low Level
  • 10.4 mA Current Output - During Zero Adjustment (450 seconds)
  • 2 Vdc, 120 mA - Max.
  • 3.8-20.5 mA (-1.25 to 103.13 %)
  • 30 Vdc, Max.
  • 4-20 mA DC, 2-Wire System - Current Output

Output Format

  • Alarm Output
  • Current Output
  • Pulse Output

Power

  • 0.12 W - Max.

Power Supply

  • 14.7 to 42 Vdc, 2-Wire System - Integral Flowmeter Operating Voltage Range
  • 42 Vdc, Max.

Process Connection Style

  • Wafer

Process Temperature

  • -40° to 130° C (-40° to 266° F)

Pulse Range

  • 0.0001 to 10,000 Pulse/second - Pulse Output Rate
  • 0.05 to 100 milliseconds - Pulse Width

Repeatability

  • ± 0.2 % of Rate (When the Flow Velocity is 1.5 m/sec Toward 2 m/sec of Setting Span)

Resistance

  • 10 ohms or Less - Grounding Resistance when Lightning Protector is Used
  • 100 ohms or Less - Grounding Resistance
  • 250 to 600 ohms (Including Cable Resistance) - Load Resistance

Ring Material

  • 316 Stainless Steel - Grounding Ring (Plate Typical)
  • Hastelloy C-276 - Grounding Ring (Plate Typical)
  • Stainless Steel-JIS SUS316L or ASTM 316L (AISI 316L Stainless Steel / EN 1.4404 Equivalent) - Grounding Ring (Plate Typical)

Rotation

  • 180° Rotated Converter to Change the Direction of Electrical Connection
  • 90° Rotated Converter to Change the Direction of Electrical Connection
  • -90° Rotated Converter to Change the Direction of Electrical Connection

Size

  • 1 to 8” (25 to 200 mm): 10 μS/cm or Larger - Fluid Conductivity
  • 1” to 4” (25 to 100 mm) - Wafer & Flange Typical

Supply Voltage

  • 14.7-32 Vdc for Lightning Protector
  • 14.7-42 Vdc for General-purpose Use & Explosion-proof Typical
  • 20.6-42 Vdc - Communication Requirement for BRAIN, HART
  • 250 Vac - Electrode Circuit, Allowable Voltage (50/60 Hz)
  • 250 Vdc - Allowable Voltage

Switch Quantity

  • 4 Magnet Switches (Including Push Switches) - Operational Switch

Temperature Range

  • -20° to 130° C (-4° to 265° F) - Fluid Temperature

Time Constant

  • 1 to 200 seconds (63 % Response) - Damping Time Constant
  • 5 seconds - Default Damping Time Constant

Vibration

  • 9.8 m/sec² or Less (500 Hz or Less)

Wetted Materials

  • 316 Stainless Steel - Grounding Ring/Grounding Electrode
  • 316L Stainless Steel - Electrode
  • Fluorocarbon PFA Lining
  • Hastelloy C-276 Equivalent - Electrode
  • Platinum Iridium - Electrode
  • Tantalum - Electrode

Wiring

  • 0.5 to 1.5 mm² - Stranded Wire: Nominal Cross Section
  • 0.5 to 2.5 mm² - Single Wire: Nominal Cross Section
