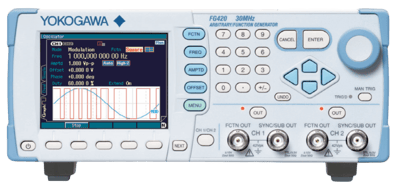

FG400 Arbitrary/Function Generator
Brand: Yokogawa Electric CorporationThe FG400 easily generates basic, application specific and arbitrary waveforms with a sine wave frequency range of 0.01 µHz to 30 MHz.
Output waveforms consist of Sine, Square, Pulse, Ramp, Parameter-variable, Noise (Gaussian distribution), DC and Arbitrary.
This unit includes isolated outputs that allow the user to use it in the development of floating circuits, like motor drives, inverters, power supplies and other power electronic devices.
In addition, multiple units can be synchronized together to generate up to 12 phases of output.
Features- 0.01 μHz to 30 MHz, 20 Vp-p, 1 or 2 Channels
- Intuitive Operation with a 3.5” LCD Screen
- Synchronize up to 6 units to Provide up to 12 Output Channels
- A Variety of Sweeps and Modulations
Specifications
Accuracy
- ± (1 % of Amplitude Setting [V Peak-to-Peak] + 2 mV Peak-to-Peak)/Open - Amplitude
- ± (1 % of DC Offset Setting [V] + 5 mV + 0.5 % of Amplitude Setting [V Peak-to-Peak])/Open {Sine, 10 MHz or Lower, 20° to 30° C (68° to 86° F)} - DC Offset
- ± (3 ppm of Setting + 2 PHz), Aging Rate ± 1 ppm/Year - Frequency Accuracy
Approvals & Certifications
- AS
- BS
- CSA
- GB
- UL
- VDE
Channels
- FG410: 1-Channel
- FG420: 2-Channels
Consumption
- 50 VA - Power Consumption (FG410)
- 75 VA - Power Consumption (FG420)
Display
- 3.5" TFT Color LCD
Duty Cycle
- 0.0000 to 100.0000 % - Extended Range
- 0.0100 to 99.9900 % - Normal Range
- 0.0170 to 99.9830 % - Duty Setting Range for Pulse Width of Pulse Wave
Elastomers
- NBR
Frequency
- 0.01 μHz to 10 MHz - Sweep-Gated Single-Shot & Burst (Sine, Square & Pulse), Sequence (Sine, Square)
- 0.01 μHz to 15 MHz for Square & Pulse Wave - Continuous, Modulation, Sweep (Continuous, Single-Shot)
- 0.01 μHz to 30 MHz for Sine Wave - Continuous, Modulation, Sweep (Continuous, Single-Shot)
- 0.01 μHz to 5 MHz for Ramp, Parameter-Variable Waveform & Arbitrary
- 1 kHz (50 mV Peak-to-Peak to 10 V Peak-to-Peak/50 ohms) - Amplitude Frequency
- 100 kHz or Lower (± 0.1 dB) - Amplitude Frequency
- 100 kHz to 5 MHz (± 0.15 dB) - Amplitude Frequency
- 20 to 30 MHz, ± 0.5 dB (± 0.8 dB at 2.8 V Peak-to-Peak / 50 ohms or Higher) - Amplitude Frequency
- 5 to 20 MHz (± 0.3 dB) - Amplitude Frequency
- Fixed to 26 MHz Equivalent Bandwidth - Noise
Function
- Addition
- Division
- Multiplication
- Start
- Stop
- Subtraction
Humidity
- 5 to 85 % RH
Input Impedance
- 10 kΩ
Interface Connection
- GPIB
- USB
Measuring Time
- 0.1 ms to 10,000 seconds (4-digits or 0.1 ms) - Sweep Time Setting Range
- 15.0 Nanoseconds to 58.8 Megaseconds (3-Digits or 0.1 Nanoseconds Resolution) for Leading & Trailing Edge Time of Pulse Wave
- 25.50 Nanoseconds to 99.9830 Megaseconds -Time Setting Range for Pulse Width of Pulse Wave
Mounting
- Rack-Mounted
Operating Temperature
- 0° to 40° C (32° to 104° F)
Output
- -3 to 3 V / Open - Internal Modulation Signal
- 0-20 V Peak-to-Peak/Open
- 0-3 V / Open - Sweep x Drive
- Arbitrary Waveform
- Noise Waveform (Gaussian Distribution)
- Parameter-Variable Waveform
- Pulse Signals - Output Waveform
- Ramp Wave
- Sine Wave
- Square Wave Pulse - Output Waveform
- TTL Level Synchronous - Sync Signals
Output Impedence
- 50 ohms - Unbalanced
Power Supply
- 100-230 Vac ± 10 %, 50/60 Hz ± 2 Hz
- Maximum
Resolution
- ± 0.5 V - DC Offset
- ± 499.9 mV - DC Offset
- 0.01 µHz - Frequency Setting Resolution
- 0.1 mV - DC Offset
- 0.1 mV Peak-to-Peak Amplitude - Setting Resolution
- 1 mV - DC Offset
- 1 mV Peak-to-Peak Amplitude - Setting Resolution
- 1 V Peak-to-Peak Amplitude - Setting Resolution
- 16-bits Amplitude Resolution - Arbitrary Waveform
- 4-Digits Lower for Amplitude (Setting Resolution) & DC Offset
- 5-Digits Higher for Amplitude (Setting Resolution) & DC Offset
- 999.9 mV Peak-to-Peak Amplitude - Setting Resolution
System Requirements
- Windows XP/7
