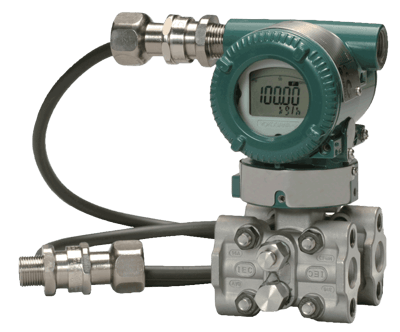

EJX910A Multivariable Transmitter

Brand: Yokogawa Electric Corporation

The EJX910A multivariable pressure transmitter delivers precise measurements of differential pressure, static pressure, and process temperature.

It features multi-sensing technology with a single-crystal silicon resonant sensor and covers multiple protocols, including HART, FOUNDATION Fieldbus, and RS485 Modbus.
Features
  • Utilizes DPHarp sensor technology
  • Factory-programming available to specific primary elements
  • Available in Mass Flow and Multi-Sensing Versions
Mass Flow Version
  • ±1.0% mass flow rate accuracy
  • Fully compensated mass flow
  • Pulse / Contact output
  • TUV SIL 2/3 Certification
Multi-Sensing Version
  • ±0.04% Differential Pressure Accuracy
  • ±0.1% Static Pressure Accuracy
  • TUV SIL 2/3 Certification

Specifications

Accuracy

  • ± (0.005 + 0.0035 URL/Span) % of Span for Capsule M (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy of Calibrated Span for Differential Pressure
  • ± (0.005 + 0.0049 URL/Span) % of Span for Capsule H (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy of Calibrated Span for Differential Pressure
  • ± (0.015 + 0.005 URL/Span) % of Span for Capsule L (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy of Calibrated Span for Differential Pressure
  • ± 0.04 % of Span (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy of Calibrated Span for Differential Pressure
  • ± 0.1 % of Span (Includes Terminal-based Linearity, Hysteresis & Repeatability) - Reference Accuracy of Calibrated Span for Absolute Pressure
  • ± 0.5° C (± 0.9° F) Includes Terminal-based Linearity, Hysteresis & Repeatability, - External Temperature
  • ± 1 % of Mass Flow Rate over 10:1 Flow Range (100:1 Differential Pressure Range) for Liquids & Gases - Mass Flow Reference Accuracy

Alarm

  • Down-Scale: -2.5 %, 3.6 mA DC or Less
  • High/Low - Contact Output Function
  • Up-Scale: 110 %, 21.6 mA DC or more

Ambient Temperature Range

  • -30° to 80° C (-22° to 176° F) with LCD Display
  • -40° to 85° C (-40° to 185° F)

Approvals & Certifications

  • Leak Test
  • Material Certificate
  • Pressure Test
  • SIL 2 Capability for Single Transmitter Use, SIL 3 Capability for Dual Transmitter Use, IEC 61508: 2000

Approvals & Certifications

  • ATEX Flameproof & Intrinsically Safe
  • CE
  • CSA Explosion-proof & Intrinsically Safe
  • EMC EN 61326-1 Class A, EN 61326-2-3, EN 61326-2-5 (For Fieldbus)
  • FM Explosion-proof, Intrinsically Safe & Non-Incendive
  • IEC Ex Flameproof
  • NAMUR
  • PED 2014/68/EU, 97/23/EC
  • UL

BSP Connection

  • 1/2” BSPT Female
  • 1/4” BSPT Female

Burst Pressure

  • psi: 10,000 (MPa: 69, bar: 690)

Cable Length

  • 1.64 to 81 feet (0.5 to 25 metres)

Communication

  • Baud Rate: 1,200, 4,800, 9,600, 19,200 bit/sec
  • FOUNDATION Fieldbus
  • HART
  • RS-485 Modbus Communication Protocol (2-Wire Half-Duplex for Communication Protocol)

Current

  • 10 mA - Typical Supply Current for Modbus
  • 15 mA - Max.
  • 24 mA - Max.

Damping Adjustment

  • 0 to 100 seconds

Diagnostics

  • Configuration Error - Self Diagnostics
  • CPU Failure - Self Diagnostics
  • Hardware Failure - Self Diagnostics
  • Heat Trace Monitoring - Advanced Diagnostics
  • Impulse Line Blockage Detection - Advanced Diagnostics
  • Process Alarm for Differential Pressure, Static Pressure & External Temperature - Self Diagnostics

Diameter

  • 0.168” (4.3 mm) - Outside Diameter for Heat-Resistant FEP Cable with a Shield (Cable for RTD)
  • 0.335” (8.5 mm) - Outside Diameter for Oil-Proof & a Heat-Resistant Cable with a Shield (Cable for RTD)

Diaphragm Material

  • ASTM N10276
  • Hastelloy C-276

Differential Pressure

  • psi: -72.52 to 72.52 (kPa: -500 to 500, Mbar: -5,000 to 5,000)

Display

  • 5-Digit - Flow, Differential Pressure, Static Pressure & External Temperature
  • 6-Digit Numerical Display - Total Flow
  • 6-Digit Unit Display
  • Bar Graph
  • LCD Display

Drain, Vent Valves & Plug

  • 316 Stainless Steel - Name Plate & Tag

Duty Cycle

  • 50 % Approximately (1: 2 to 2: 1)

Electrical Connectors

  • 1/2” NPT Female
  • G 1/2” Female
  • M20 Female

Electrical Rating

  • 10.5-30 Vdc, 120 mA DC, Max.

Enclosure Finish

  • Anti-Corrosion Coating
  • Polyurethane Paint, Mint-Green (Munsell 5.6BG 3.3/2.9 or its Equivalent)

Enclosure, Body Material

  • ASTM CF-8M Stainless Steel
  • Low Copper Cast Aluminum Alloy

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Execution Time

  • 30 milliseconds - Function Block AI, SC, IT, IS, AR
  • 45 milliseconds - Function Block PID

Fill Material

  • Fluorinated Oil
  • Silicone Oil

Flange Material

  • ASTM CF-8M (Cast Version of 316 Stainless Steel. Equivalent to SCS14A) - Cover Flange

Frequency

  • 10 kHz, Max.

Gasket Material

  • Fluorinated Rubber - Process Connector Gasket
  • PTFE Teflon - Process Connector Gasket
  • Teflon-Coated 316L Stainless Steel

Gland Material

  • Nickel Plating Brass - Cable Gland

Humidity

  • 0 to 100 % Relative Humidity - Ambient Humidity

Indication

  • Digital

Input

  • RTD

Length

  • 1.33” (34 mm) - Long Vent Standard Length
  • 4.6” (119 mm) - Total Length of Long Vent

Load

  • 0 to 1,335 ohms - for Operation - for HART Protocol Typical
  • 250 to 600 ohms for Digital Communication - for HART Protocol Typical

Materials of Construction

  • 304 Stainless Steel - Mounting Bracket
  • 316 Stainless Steel - Name Plate & Tag

Media

  • Liquids & Gases
  • Steam

Mounting

  • 2” Pipe Mounting Bracket

Mounting Position

  • Horizontal
  • Vertical

Mounting Position Effect

  • Tilting up to 90° will cause Zero Shift up to 0.4 kPa

NACE & NIST

  • NACE MR-0103
  • NACE MR-0175, ISO 15156

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female

Nut & Bolt Material

  • 316L Stainless Steel
  • 660 Stainless Steel
  • B7 Carbon Steel

O-Ring Material

  • Buna-N - Cover O-Ring
  • Fluororubber - Cover O-Ring

Operating Temperature

  • -20° to 80° C (-4° to 176° F) - Oil-Prohibited Use

Output

  • 0-2 Vdc - Low Level Pulse Output
  • 3.8-20.5 mA - NAMUR NE43 Compliant Output Signal Limit
  • 3.8-21.6 mA - Analog Output
  • 4-20 mA DC (2-Wire) with Digital Communication

Output Format

  • Transistor Output

Overpressure Effect

  • ± 0.03 % of URL up to psi: 3,600 (MPa: 25, bar: 250) - for M & H Capsules
  • ± 0.06 % of URL - for M & H Capsules (Gold-Plated Diaphragm)

Power Supply Effect

  • ± 0.005 % Per Volt (21.6-32 Vdc, 350 ohms) - for HART Protocol Typical

Pressure Range

  • kPa: -500 to 500
  • mbar: -5,000 to 5,000
  • mmWC: -10,000 to 10,000
  • psi: -72.52 to 72.52

Pressure Type

  • Absolute
  • Differential
  • Gauge

Process Connection Material

  • ASTM CF-8M (Cast Version of 316 Stainless Steel. Equivalent to SCS14A)

Process Temperature

  • -40° to 120° C (-40° to 248° F)

Response Time

  • 200 milliseconds for M, H Capsule (Differential Pressure) & L, M, H Capsule (Static Pressure) - HART, Modbus
  • 230 milliseconds for L Capsule (Differential Pressure) - HART, Modbus
  • 300 milliseconds for L, M, H Capsule (Static & Differential Pressure) - Fieldbus

RTD Type

  • Pt100

Sensor, Probe Type

  • RTD

Stability

  • ± 0.1 % of URL Per 10-Years - All Normal Operating Condition, Including Overpressure Effects

Static Pressure

  • psi: -14.5 to 3,600 (MPa: -0.1 to 25, bar: -1 to 250) - Gauge Pressure
  • psia: 0 to 3,600 (MPa: 0 to 25, bar: 0 to 250) - Absolute Pressure

Static Pressure Effect

  • ± 0.02 % of URL Per psi: 1,000 (MPa: 6.9, bar: 69) for Capsule M - Effect on Zero
  • ± 0.028 % of URL Per psi: 1,000 (MPa: 6.9, bar: 69) for Capsule H - Effect on Zero
  • ± 0.05 % of URL Per psi: 1,000 (MPa: 6.9, bar: 69) for Capsule L - Effect on Zero
  • ± 0.075 % of Span Per psi: 1,000 (MPa: 6.9, bar: 69) - Span Effect

Supply Pressure - Maximum

  • psi: 2,300 (MPa: 16, bar: 160) - L Capsule
  • psi: 3,600 (MPa: 25, bar: 250) - M & H Capsule

Supply Voltage

  • 10.5-30 Vdc for Intrinsically Safe, Typical N or Non-Incendive - HART
  • 10.5-32 Vdc for Lightning Protector - HART
  • 10.5-42 Vdc for General Use & Flameproof Typical - HART
  • 16.6 Vdc Min. Voltage - HART
  • 24 Vdc Supply, up to A 570 ohms Load
  • 300 V Voltage Rating - Cable for RTD
  • 9-30 Vdc, 250 mW for General Use & Flameproof Typical - Modbus
  • 9-32 Vdc for General Use, Flameproof Typical, Typical N or Non-Incendive - FOUNDATION Fieldbus

Temperature Effect

  • ± (0.04 % of Span + 0.009 % of URL) Per 28° C (50° F) for Capsule M - Ambient Temperature Effect for Differential Pressure
  • ± (0.04 % of Span + 0.0125 % of URL) Per 28° C (50° F) for Capsule H - Ambient Temperature Effect for Differential Pressure
  • ± (0.055 % of Span + 0.09 % of URL) Per 28° C (50° F) for Capsule L - Ambient Temperature Effect for Differential Pressure
  • ± 0.08 % of Span ± 0.018 % of URL Per 28° C (50° F) for M, H Capsule - Ambient Temperature Effect for Static Pressure
  • ± 0.08 % of Span ± 0.028 % of URL Per 28° C (50° F) for L Capsule - Ambient Temperature Effect for Static Pressure
  • ± 0.5° C (± 0.9° F) - Ambient Temperature Effect Per 28° C (50° F) Change

Temperature Range

  • 10° to 1,050° C (18° to 1,890° F) - External Temperature Span for Capsule M, H & L
  • -200° to 850° C (-328° to 1,562° F) - External Temperature Range for Capsule M, H & L
  • -273° to 1,927° C (-459° to 3,500° F) - Fixed External Temperature (Pt100 ohm)
  • -40° to 105° C (-40° to 221° F) - Cable for RTD
  • -80° to 200° C (-112° to 392° F) - Cable for RTD

Update Time

  • 1,000 milliseconds for Total Flow - HART
  • 100 milliseconds - HART (Flow Rate, Differential Pressure, Static Pressure), Modbus (Differential Pressure, Static Pressure)
  • 200 milliseconds for Flow Rate, Differential Pressure, Static Pressure - Fieldbus
  • 400 milliseconds for External Temperature - HART, Modbus
  • 800 milliseconds for External Temperature - Fieldbus

Vibration Effect

  • ± 0.1 % of URL when Tested Per the Requirements of IEC 60770-1 Field or Pipeline with High Vibration Level (10-60 Hz, 0.21 mm Displacement / 60 to 2,000 Hz 3 G) - Differential & Static Pressure
  • ± 0.1 % of URL when Tested Per the Requirements of IEC 60770-1 Field with General Application or Pipeline with Low Vibration Level (10-60 Hz, 0.15 mm Displacement / 60-500 Hz 2 G) - Differential & Static Pressure
  • ± 0.5° C (± 0.9° F) - External Temperature

Wetted Materials

  • 316L Stainless Steel
  • F316L Stainless Steel

Zero Offset

  • External Zero for Differential Pressure is Continuously Adjustable with 0.01 % Incremental Resolution of Span
